Rear Splash Shield Removal/Installation: Notes

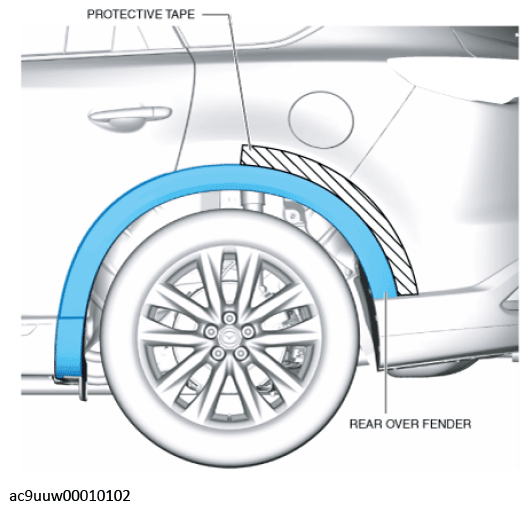

  1. Affix the protective tape to the position shown in the figure to prevent scratches and damage.
    G12266218Courtesy of MAZDA MOTORS CORP.

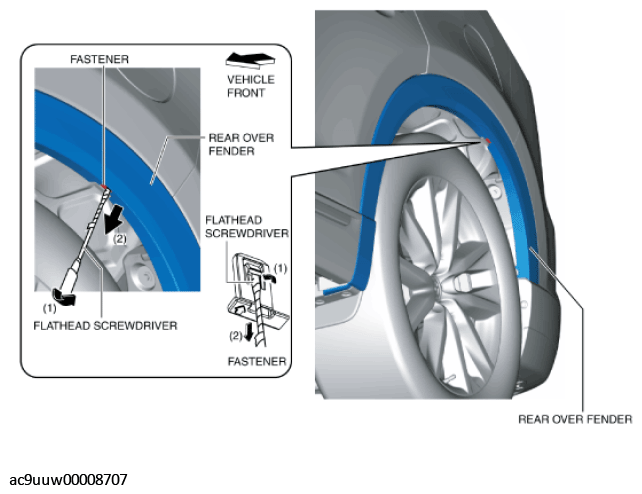

  2. Insert a tape-wrapped flat head screwdriver into the position shown in the figure.
    G11431189Courtesy of MAZDA MOTORS CORP.
  3. Move the tape-wrapped flat head screwdriver in the direction of arrow (1) shown in the figure and remove the rear over fender fastener in the direction of arrow (2). (See Rear Splash Shield Installation Note .)

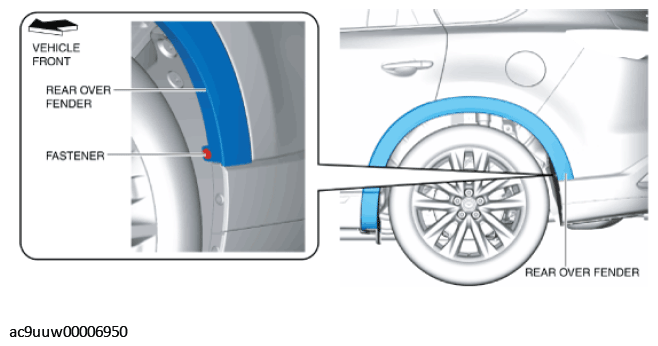

  4. Remove the fastener.
    G11431190Courtesy of MAZDA MOTORS CORP.

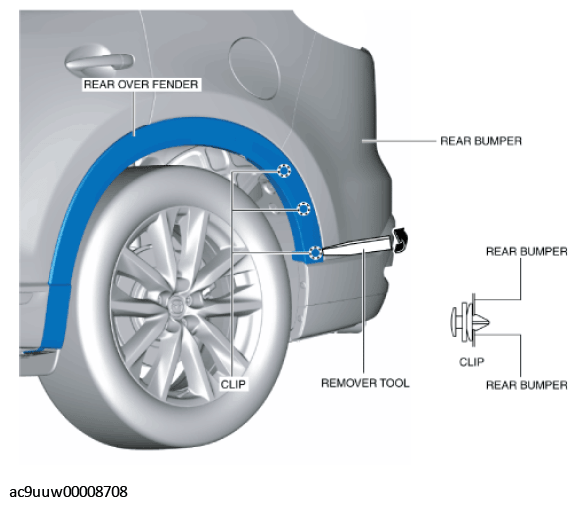

  5. Move the remover tool in the direction of the arrow shown in the figure and detach the clips of the rear over fender from the rear bumper.
    G11431191Courtesy of MAZDA MOTORS CORP.

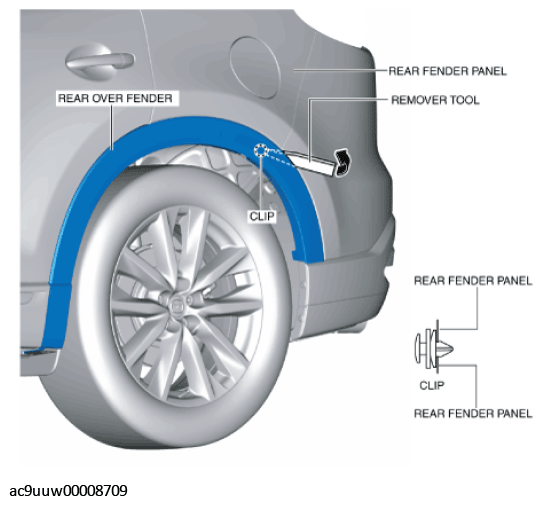

  6. Move the remover tool in the direction of the arrow shown in the figure and detach the clip of the rear over fender from the rear fender panel.
    G11431192Courtesy of MAZDA MOTORS CORP.

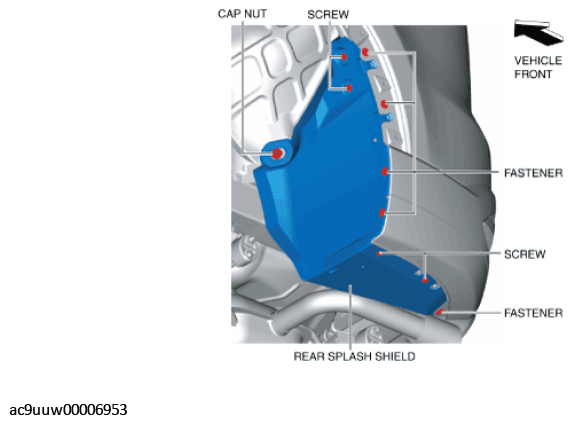

  7. Remove the screws and fasteners.
    G11431193Courtesy of MAZDA MOTORS CORP.
  8. Remove the cap nut.

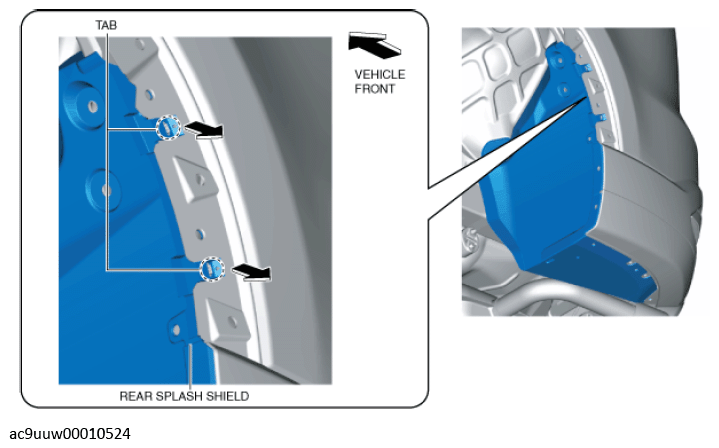

  9. Pull the rear splash shield in the direction of the arrows shown in the figure and detach the rear splash shield tabs.
    G12266224Courtesy of MAZDA MOTORS CORP.
  10. Remove the rear splash shield.
  11. Install in the reverse order of removal.
