Rear One-Touch Walk-In Control Module Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)

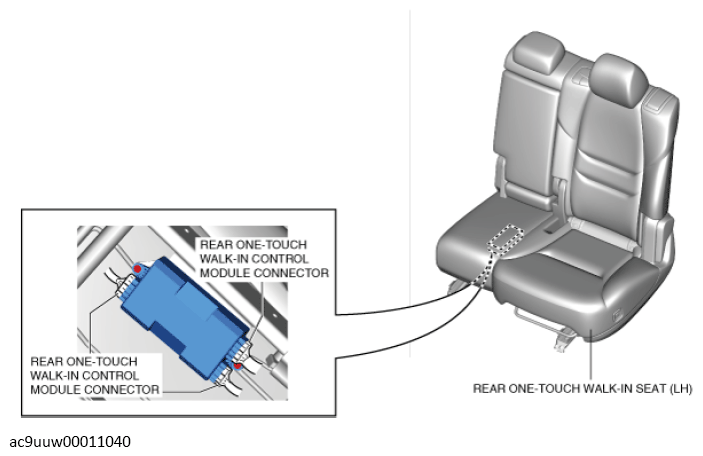

  3. Disconnect the rear one-touch walk-in control module connectors.
    G13451289Courtesy of MAZDA MOTORS CORP.

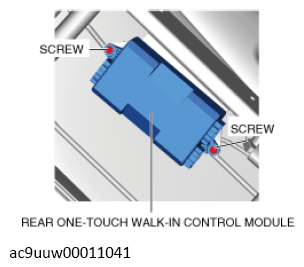

  4. Remove the screws.
    G13451290Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear one-touch walk-in control module.
  6. Install in the reverse order of removal.
