DTC P1888-11, P1888-15: Differential Oil Temperature Sensor Circuit [AWD Control Module]: Notes
WARNING: This page is about a different variant/trim than selected.
DTC P1888:11 /P1888:15 [AWD CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P1888:11 |
Differential oil temperature sensor circuit |
| DTC P1888:15 |
| DETECTION CONDITION |
- P1888:11
- Short to ground is detected in differential oil temperature sensor circuit
- P1888:15
- Short to battery or open circuit is detected in differential oil temperature sensor circuit
|
| FAIL-SAFE FUNCTION |
- Control disabled.
- AWD warning light: Illuminated
|
| POSSIBLE CAUSE |
- Differential oil temperature sensor malfunction

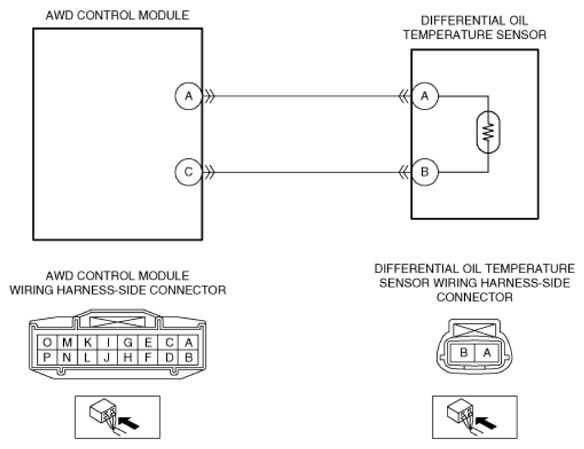

- Open circuit, or short to power or ground between AWD control module terminal A and differential oil temperature sensor terminal A
- Open circuit or short to power between AWD control module terminal C and differential oil temperature sensor terminal B
- AWD control module malfunction
- Poor connection of connectors (female terminals)
|
 Courtesy of MAZDA MOTORS CORP.
|
