Propeller Shaft Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:

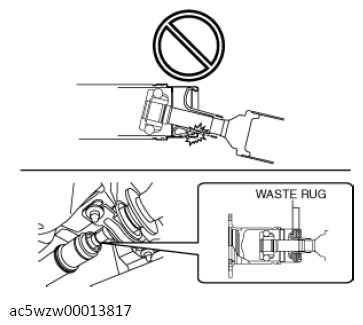

  • If the constant velocity joint is bent during propeller shaft removal/installation or transportation after servicing, the constant velocity joint boot may contact the metallic cover and the boot may be damaged. Insert a rag between the boot and the metallic cover before servicing to protect the boot
G13673642Courtesy of MAZDA MOTORS CORP.
  1. Remove the floor under cover No. 1. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  2. Remove the floor under cover No. 2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove the fasteners in the order shown in the figure.
    Fig 1: Insulator Fasteners Loosening Sequence
    G12184659Courtesy of MAZDA MOTORS CORP.
  4. Remove the insulator.
  5. Remove the following parts.
    1. Brace bar

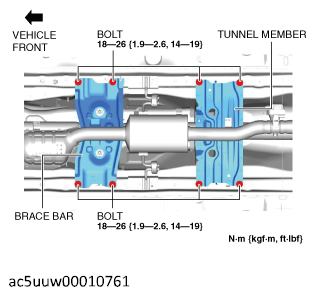

      Fig 2: Brace Bar Bolts With Torque Specification
      G12185079Courtesy of MAZDA MOTORS CORP.
    2. Tunnel member
  6. For (VIN M) vehicles, perform the following procedure.
    1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
    2. Remove the TWC from the mount rubber.

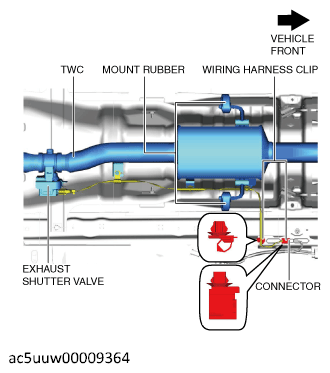

      G12185080Courtesy of MAZDA MOTORS CORP.
    3. Disconnect the exhaust shutter valve connector.
    4. Disconnect the wiring harness clips.
    5. Remove the nut.

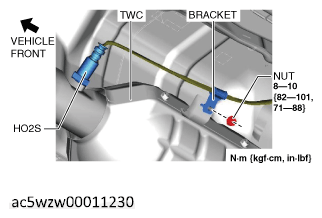

      Fig 3: TWC Bracket Nut With Torque Specification
      G12185081Courtesy of MAZDA MOTORS CORP.
    6. Disconnect the bracket from the TWC.
    7. Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [(VIN M)] .)
    8. Suspend the TWC using a cable as shown in the figure.
      G12185082Courtesy of MAZDA MOTORS CORP.
  7. For (VIN Y) vehicles, perform the following procedure.
    1. Remove the nut.

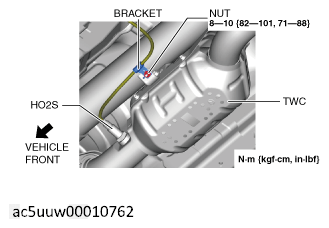

      Fig 4: TWC Bracket Nut With Torque Specification
      G12185083Courtesy of MAZDA MOTORS CORP.
    2. Disconnect the bracket from the TWC.
    3. Remove the TWC from the mount rubber.

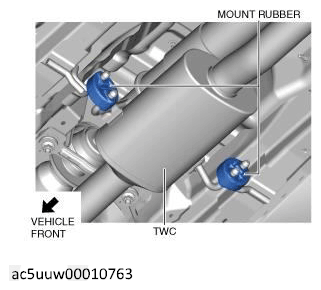

      G12185084Courtesy of MAZDA MOTORS CORP.
    4. Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION (VIN Y) .)
    5. Suspend the TWC using a cable as shown in the figure.
      G12185082Courtesy of MAZDA MOTORS CORP.
  8. Remove in the order indicated in the figure.
  9. Install in the reverse order of removal.
  10. Perform a road test and verify that there is no abnormal vibration or noise.

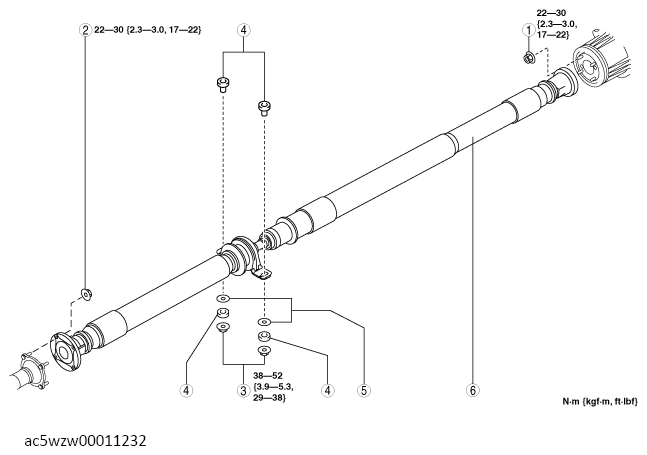

    Fig 5: Propeller Shaft Components With Torque Specification
    G13673655Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Nut (rear)
    (See Propeller Shaft Removal Note .)
    (See Propeller Shaft Installation Note .)
    2 Nut (front)
    (See Propeller Shaft Removal Note .)
    (See Propeller Shaft Installation Note .)
    3 Nut (center bearing support)
    (See Propeller Shaft Removal Note .)
    (See Propeller Shaft Installation Note .)
    4 Bush, spacer
    5 Washer
    6 Propeller shaft
    (See Propeller Shaft Removal Note .)
    (See Propeller Shaft Installation Note .)
