Rear Differential Component Removal Note

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • Always verify that the rear differential component is securely supported by a jack. If the rear differential component falls off, it can cause serious injury or death, and damage to the vehicle.
  1. Support the rear differential using a jack.
    G13673633Courtesy of MAZDA MOTORS CORP.

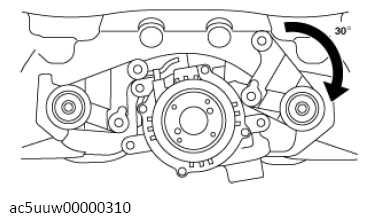

  2. Loosen the differential mounting bracket bolt and rotate the bracket as shown in the figure.
    G13673634Courtesy of MAZDA MOTORS CORP.

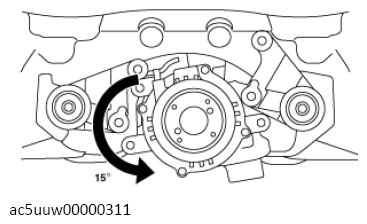

  3. Rotate the rear differential as shown in the figure, and then remove the rear differential.
    G13673635Courtesy of MAZDA MOTORS CORP.
