Rear Cover Assembly Note
WARNING: This page is about a different variant/trim than selected.
- Clean the alignment surface of the carrier and rear cove.
- Apply pressure to the case using a press and install the rear cover using the SSTs (49 B032 335A) as shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
CAUTION:
- Do not apply pressure of 2 t or more.

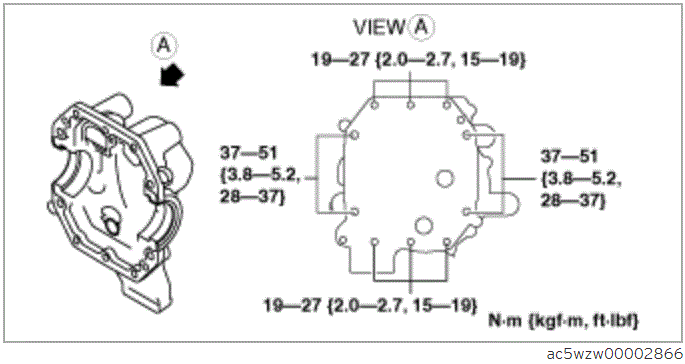

- Install the bolts with the specified torque as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
