Vacuum Pump Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Set the PCM wiring harness out of the way.
Disconnect the vacuum hose from the vacuum pump. (See VACUUM HOSE REMOVAL/INSTALLATION .)
Remove in the order shown in the table.
Install in the reverse order of removal.

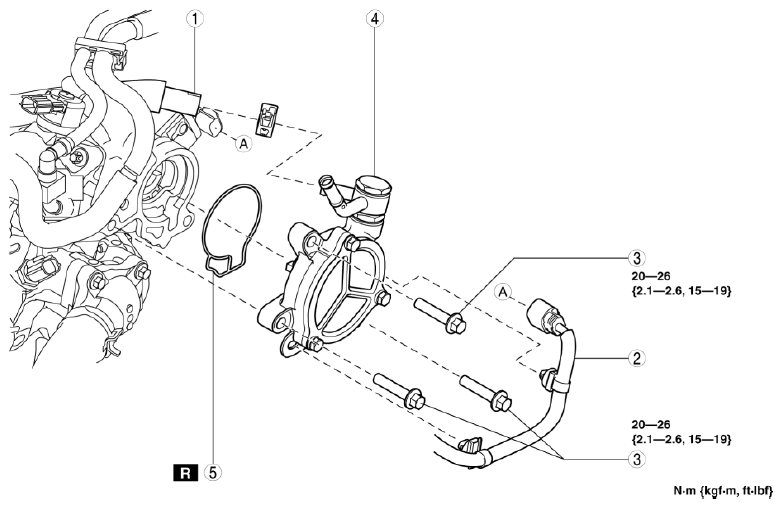

Fig 1: Vacuum Pump Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Vacuum hose
2	Exhaust CMP sensor connector and wiring harness
3	Bolt
4	Vacuum pump (See Vacuum Pump Removal Note .) (See Vacuum Pump and O-ring Installation Note .)
5	O-ring (See Vacuum Pump and O-ring Installation Note .)
