Windshield Wiper And Washer Switch Inspection
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
- Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)

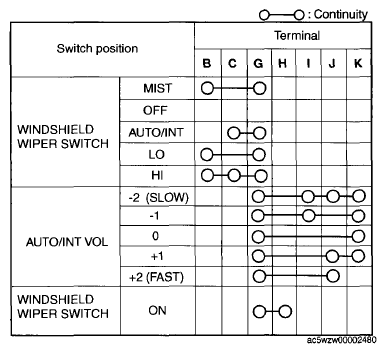

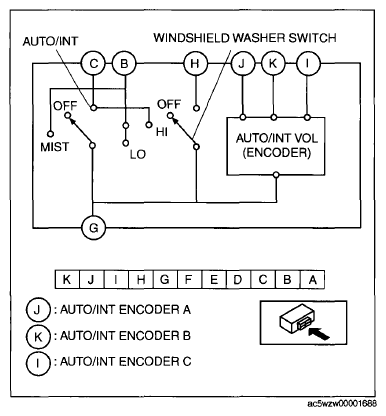

- Use a tester to measure and verify that the continuity between the windshield wiper and washer switch terminals is as indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- If the continuity is not as indicated in the table, replace the windshield wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
