Brake Light Unit Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts.
    1. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    2. Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
    3. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolt.

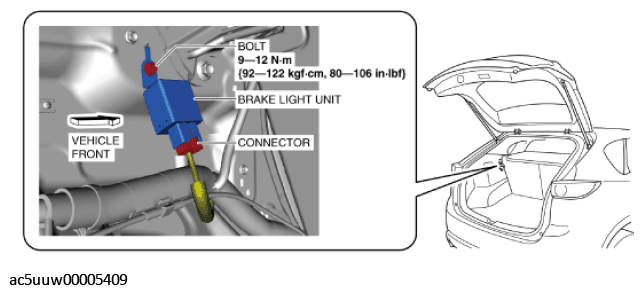

    Fig 1: Brake Light Unit Bolt And Connector
    G11428074Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Pull out the hook from the body and remove the brake light unit.

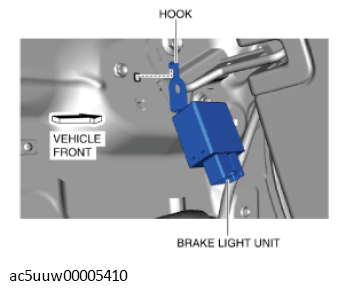

    Fig 2: Brake Light Unit And Hook
    G11428075Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
