Condenser Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    2. Bass-box (With Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    3. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    7. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    8. Assist handle (rear) (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  3. Insert a tape-wrapped flathead screwdriver into the positions shown in the figure.

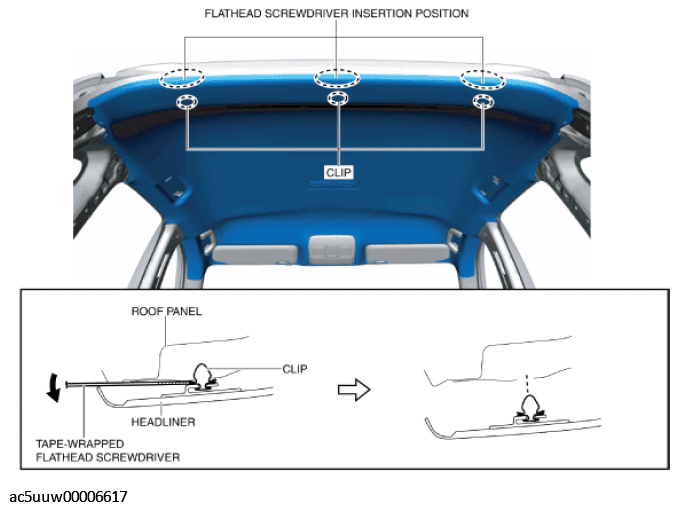

    Fig 1: Inserting Tape-Wrapped Flathead Screwdriver
    G11426068Courtesy of MAZDA MOTORS CORP.
  4. Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and detach the clips from the roof panel.
  5. Partially peel back the headliner.
    CAUTION:
    • Peeling back the headliner without supporting it may cause the headliner to bend excessively and crease. Peel back the headliner while supporting it.
  6. Disconnect the connector.

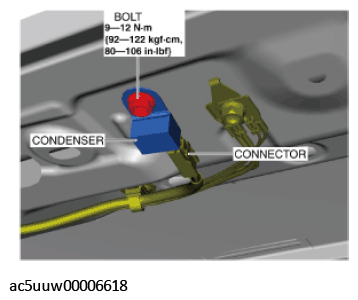

    Fig 2: Locating Condenser Connector With Torque Specifications
    G11426069Courtesy of MAZDA MOTORS CORP.
  7. Remove the bolt.
  8. Remove the condenser.
  9. Install in the reverse order of removal.
