Front Brake Caliper Component Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the piston in using the commercially available disc brake expand tool.

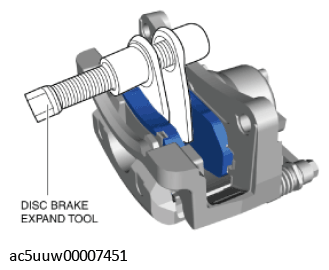

    Fig 1: Pushing Piston Using Commercially Available Disc Brake Expand Tool
    G11426909Courtesy of MAZDA MOTORS CORP.
  2. Install the front brake caliper component.
