On-Board Diagnostic Wiring Diagram [Front Body Control Module (FBCM)]

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

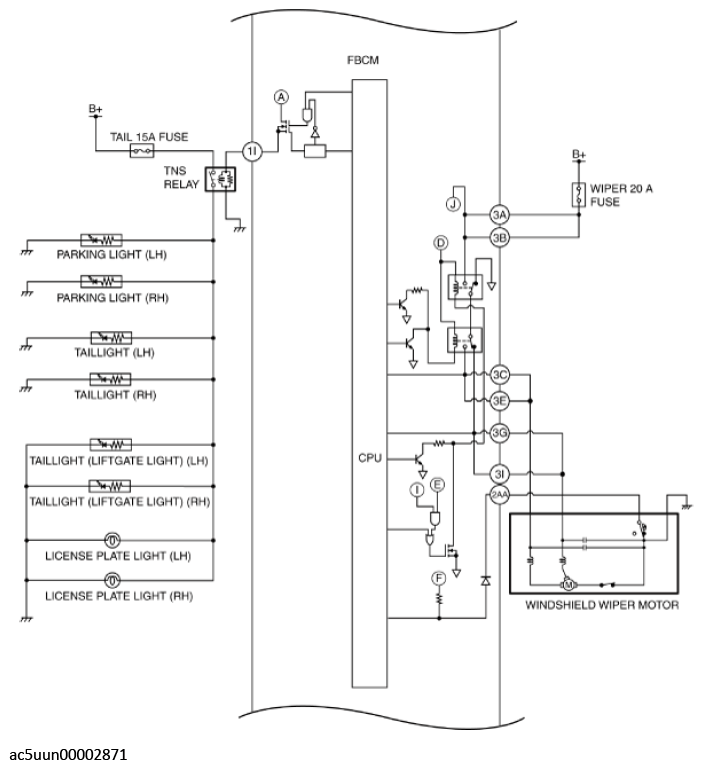

Fig 1: FBCM On-Board Diagnostic Wiring Diagram (1 Of 6)

Courtesy of MAZDA MOTORS CORP.

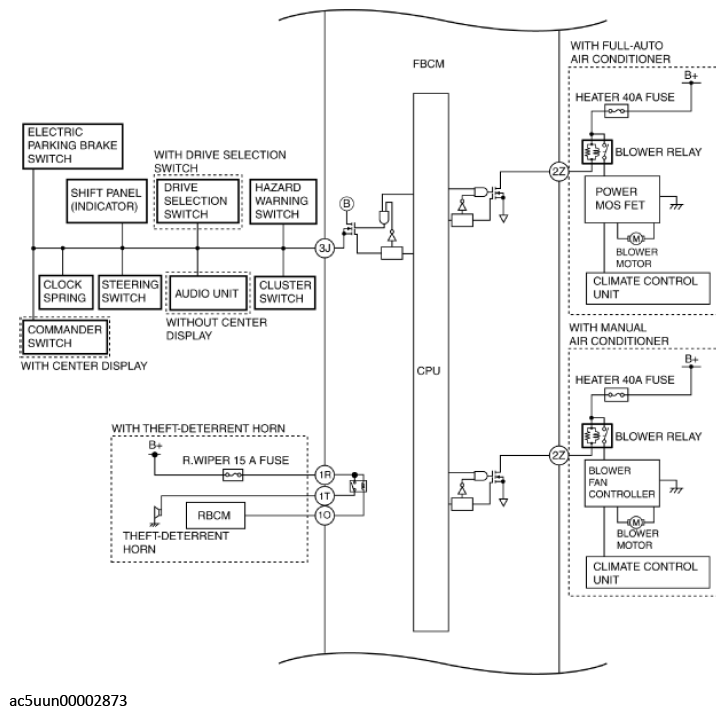

Fig 2: FBCM On-Board Diagnostic Wiring Diagram (2 Of 6)

Courtesy of MAZDA MOTORS CORP.

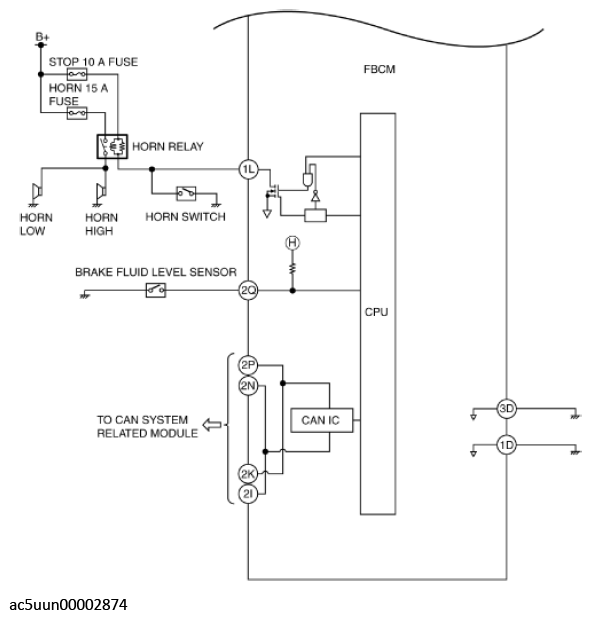

Fig 3: FBCM On-Board Diagnostic Wiring Diagram (3 Of 6)

Courtesy of MAZDA MOTORS CORP.

Fig 4: FBCM On-Board Diagnostic Wiring Diagram (4 Of 6)

Courtesy of MAZDA MOTORS CORP.

Fig 5: FBCM On-Board Diagnostic Wiring Diagram (5 Of 6)

Courtesy of MAZDA MOTORS CORP.

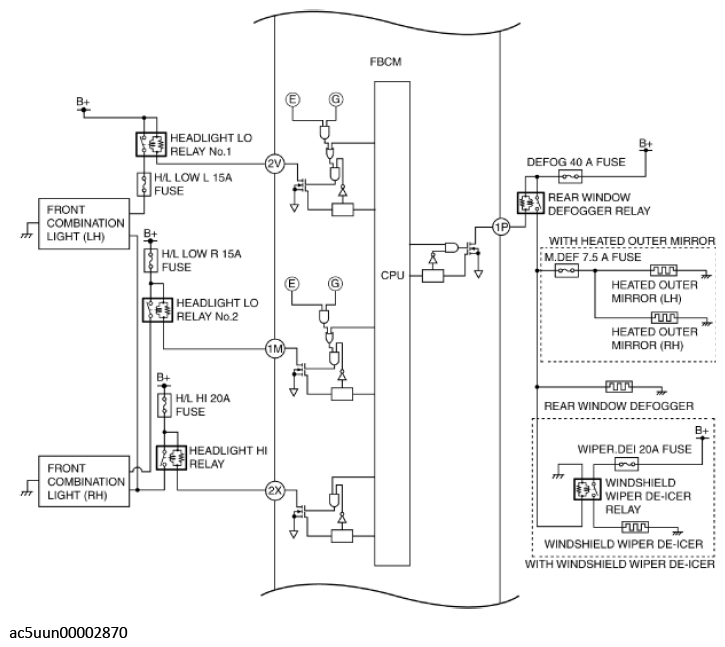

Fig 6: FBCM On-Board Diagnostic Wiring Diagram (6 Of 6)

Courtesy of MAZDA MOTORS CORP.
