Quick Diagnostic Chart

G13671544Courtesy of MAZDA MOTORS CORP.
G13671545Courtesy of MAZDA MOTORS CORP.

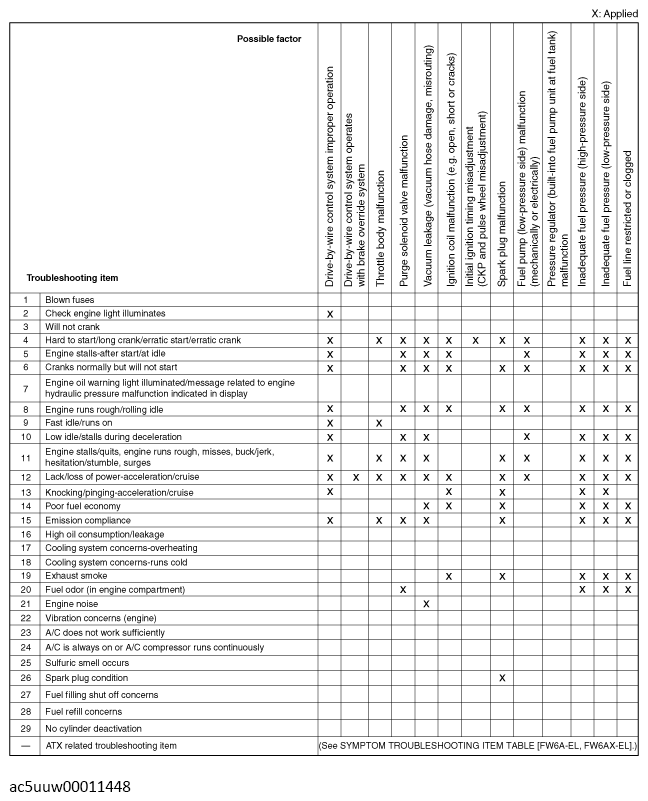

G13671546Courtesy of MAZDA MOTORS CORP.

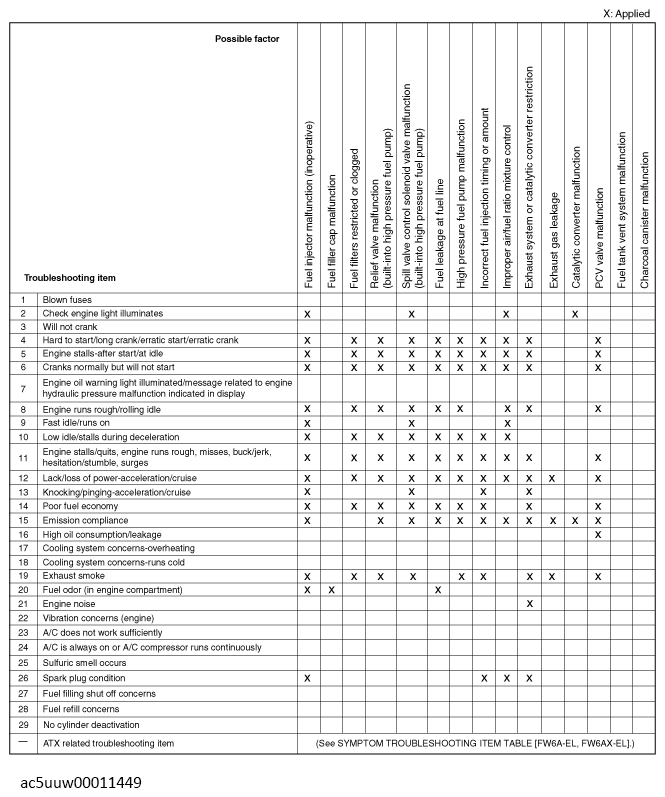

G13671547Courtesy of MAZDA MOTORS CORP.

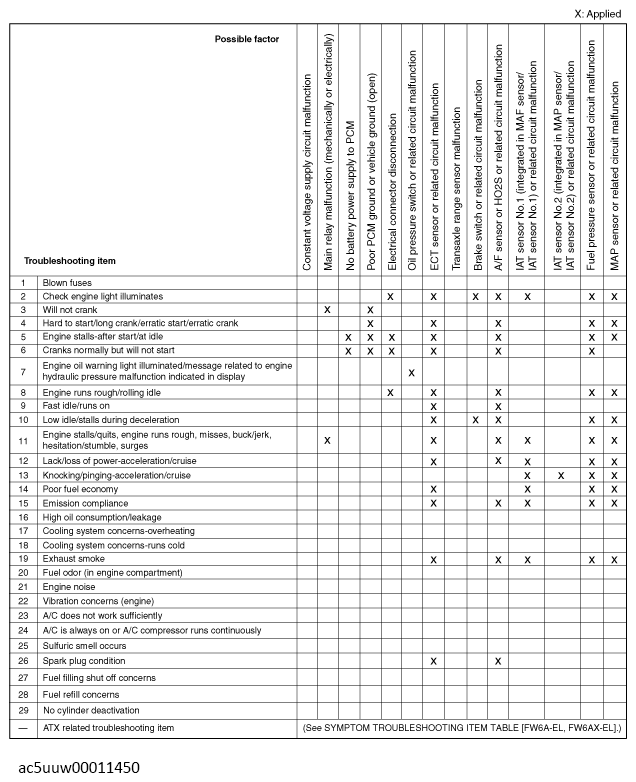

G13671548Courtesy of MAZDA MOTORS CORP.

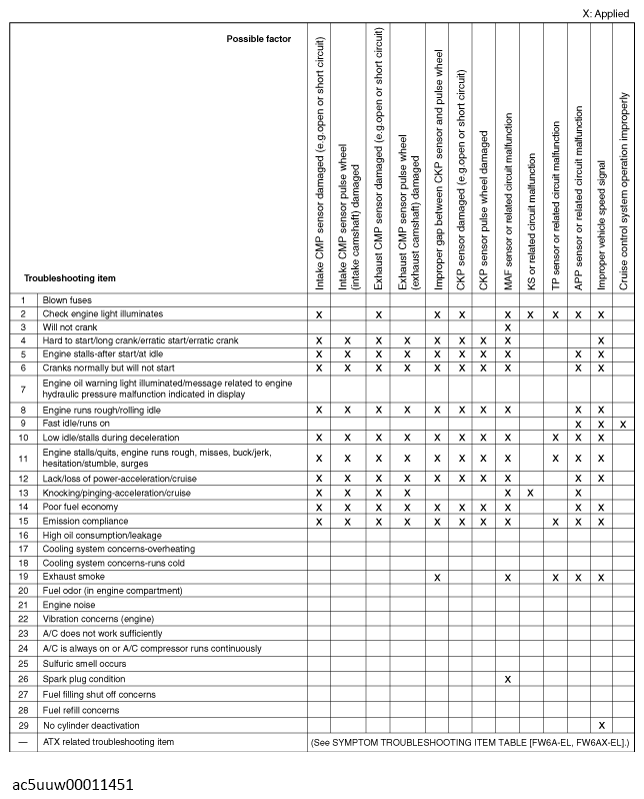

G13671549Courtesy of MAZDA MOTORS CORP.

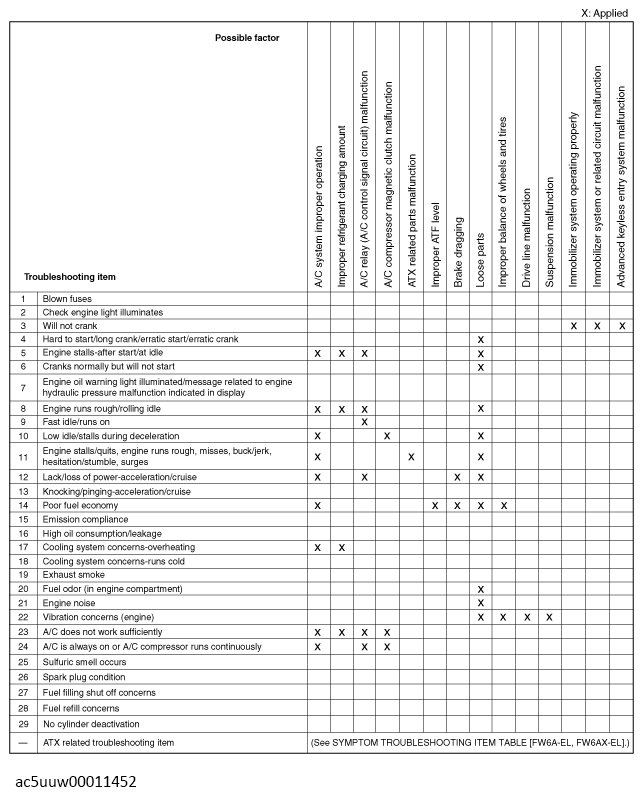

G13671550Courtesy of MAZDA MOTORS CORP.

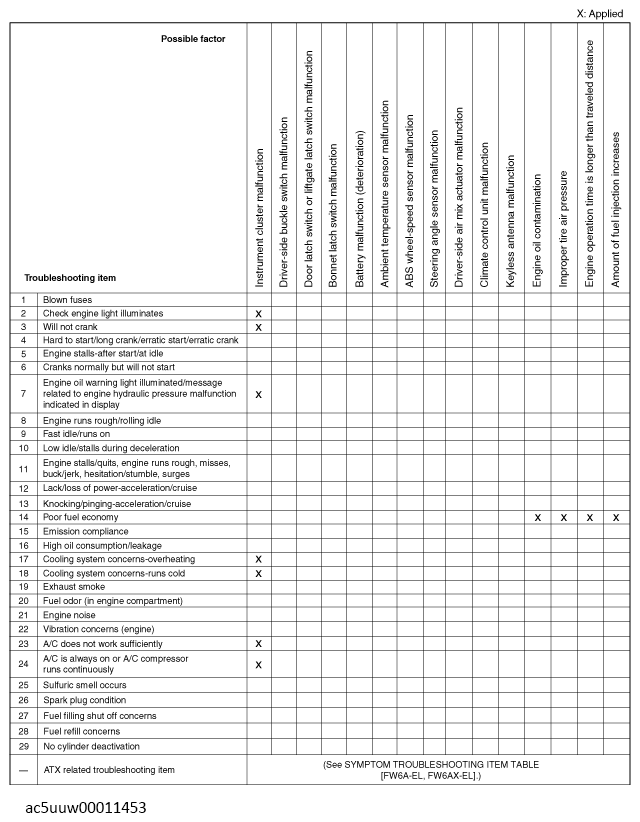

G13671551Courtesy of MAZDA MOTORS CORP.

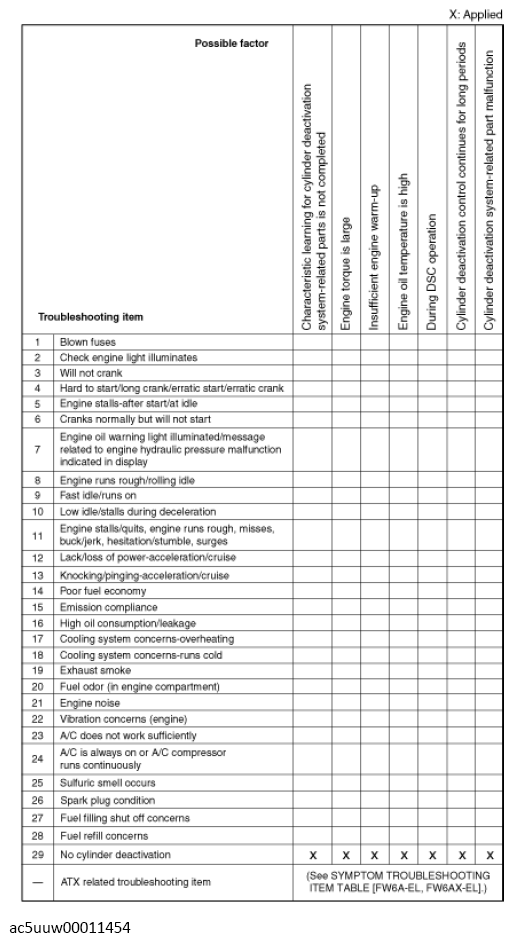

G13671552Courtesy of MAZDA MOTORS CORP.
