Steering Gear And Linkage Assembly: Notes

Special Service Tool (SST)

SPECIAL SERVICE TOOL DESCRIPTION

49 JP02 001
Adjustable wrench

Courtesy of MAZDA MOTORS CORP.

49 T025 001
Boot clamp crimpers

Courtesy of MAZDA MOTORS CORP.

Replacement Part

REPLACEMENT PART DESCRIPTION

Boot band

Quantity: 2

Location of use: Boot

Oil and Chemical Type

OIL AND CHEMICAL TYPE DESCRIPTION

Grease

Type: MOLYWHITE LSG

CAUTION:

To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

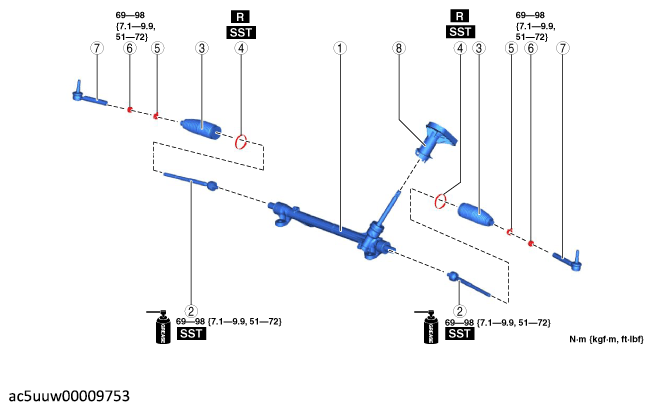

Fig 1: Steering Gear And Linkage Assembly Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Steering gear
2	Tie Rod (See Tie Rod Assembly Note .)
3	Boot
4	Boot band (See Boot Band Assembly Note .)
5	Boot clamp
6	Locknut
7	Tie-rod end (See Tie-rod End Assembly Note .)
8	Dust cover
