Decoration Link Assembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

To prevent the wire shown in the figure from coming off the rail, install while aligning the wire in the rail.

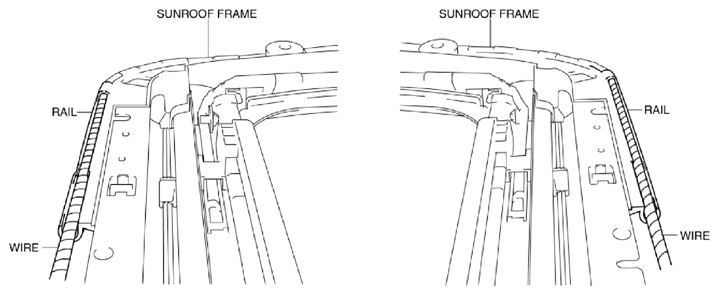

Fig 1: Identifying Sunroof Frame Rail And Wire

Courtesy of MAZDA MOTORS CORP.
