DTC B1011-95: SAS Control Module Connectors Are Poorly Connected: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If there is any vehicle malfunction complaint lodged by a customer, perform FLOWCHART [STANDARD DEPLOYMENT CONTROL SYSTEM] malfunction diagnosis according to the troubleshooting procedure. (See FLOWCHART [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

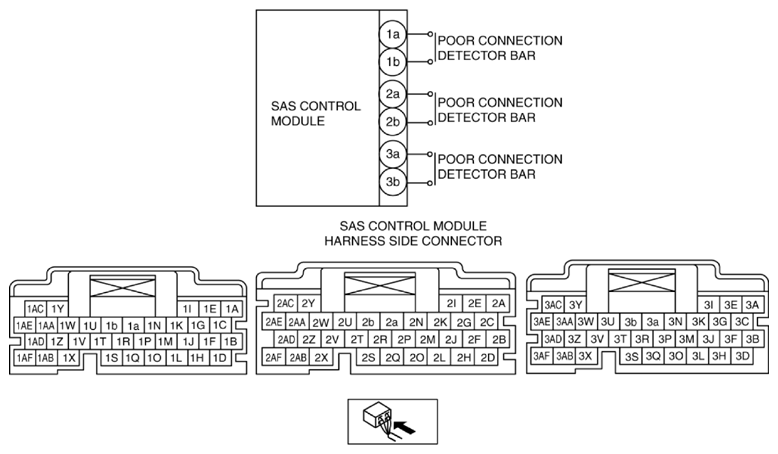

System malfunction location	SAS control module connectors are poorly connected
Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. No continuity between poorly connected detector bar terminals of the SAS control module
Fail-safe	-
Possible cause	SAS control module connectors are poorly connected SAS control module connector malfunction SAS control module malfunction
