Hazard Warning Switch Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  4. While pressing the hazard warning switch tab in the direction of the arrow (1) shown in the figure, press the hazard warning switch in the direction of the arrow (2) shown in the figure to detach the hazard warning switch tabs from the decoration panel.

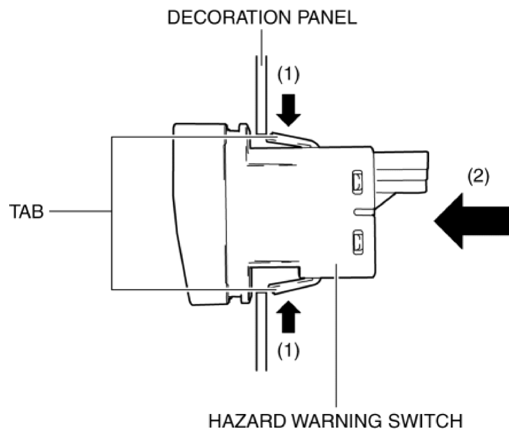

    Fig 1: Pressing Hazard Warning Switch Tab
    G10939312Courtesy of MAZDA MOTORS CORP.
  5. Remove the hazard warning switch.

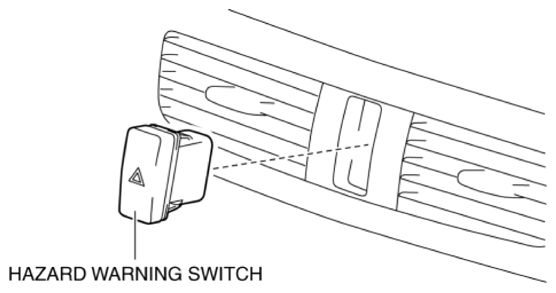

    Fig 2: Removing Hazard Warning Switch
    G10939313Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
