Cargo Compartment Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
CAUTION:
- Always disconnect the negative battery cable before performing the cargo compartment light bulb removal. Otherwise, the circuit may be shorted resulting in damage to the related parts such as the rear body control module (RBCM).
To prevent scratches or damage, affix protective tape to the position shown in the figure.
CAUTION:
- If a flathead screwdriver is inserted into the gap between the cargo compartment light and lens, the liftgate lower trim could interfere with the flathead screwdriver and be damaged. When removing the lens from the cargo compartment light, perform the procedure after affixing protective tape to the liftgate lower trim.

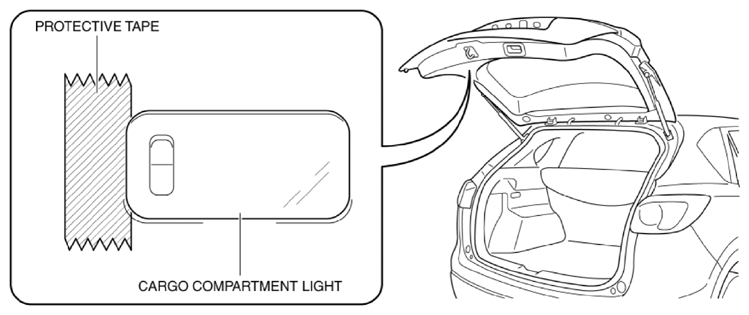

Fig 1: Affixing Protective Tape To Liftgate Lower Trim
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver into the gap between the lens and cargo compartment light shown in the figure.

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Gap Between Lens And Cargo Compartment Light
Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of the arrow shown in the figure to detach the lens tabs from the cargo compartment light.
Remove the lens.

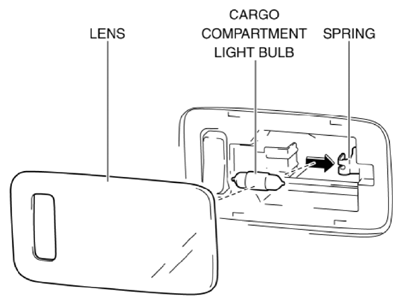

Fig 3: Detaching Spring From Cargo Compartment Light Bulb
Courtesy of MAZDA MOTORS CORP.
Press the spring in the direction of the arrow shown in the figure to detach the spring from the cargo compartment light bulb.
Remove the cargo compartment light bulb.
Install in the reverse order of removal.
