Back-Up Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

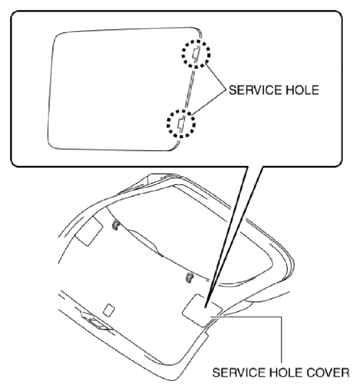

Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Service Hole
Courtesy of MAZDA MOTORS CORP.

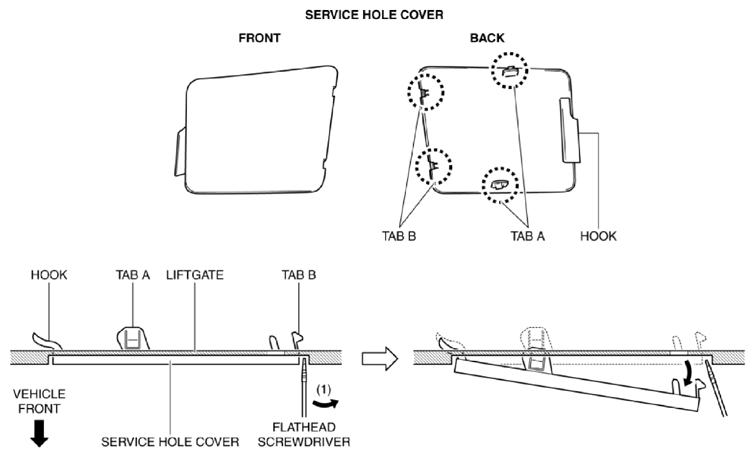

Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, pull out the service hole cover from the liftgate, and detach the service hole cover tabs and liftgate connections.

Fig 2: Detaching Service Hole Cover Tabs And Liftgate Connections
Courtesy of MAZDA MOTORS CORP.
Pull out the service hole cover in the direction of the arrow (1) shown in the figure and pull out the service hole cover hook from the liftgate.

Fig 3: Pulling Out Service Hole Cover
Courtesy of MAZDA MOTORS CORP.
Remove the service hole cover.

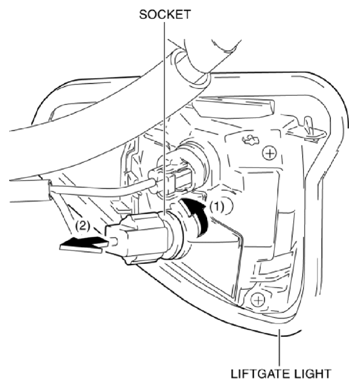

Rotate the socket in the direction of the arrow (1) shown in the figure and remove it from the liftgate light in the direction of the arrow (2) shown in the figure.

Fig 4: Rotating Socket
Courtesy of MAZDA MOTORS CORP.
Remove the back-up light bulb.

Fig 5: Removing Back-Up Light Bulb
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
