Sunroof Motor Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
Disconnect the connector.

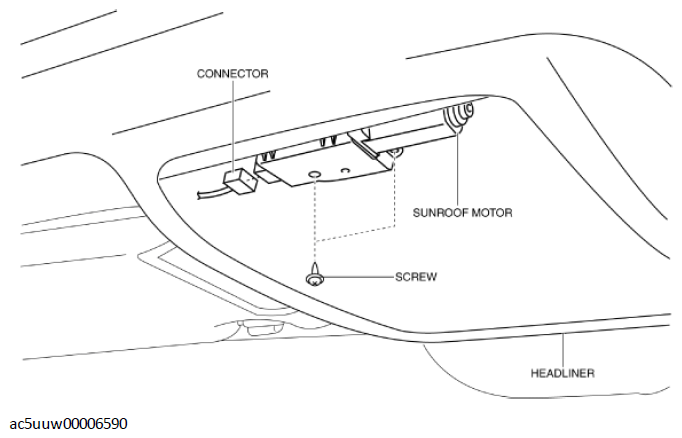

Fig 1: Sunroof Motor, Connector, Screw And Headliner
Courtesy of MAZDA MOTORS CORP.
Remove the screws.
Remove the sunroof motor.
Install in the reverse order of removal.
