Front Door Trim Disassembly/Assembly: Driver-Side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order shown in the figure.

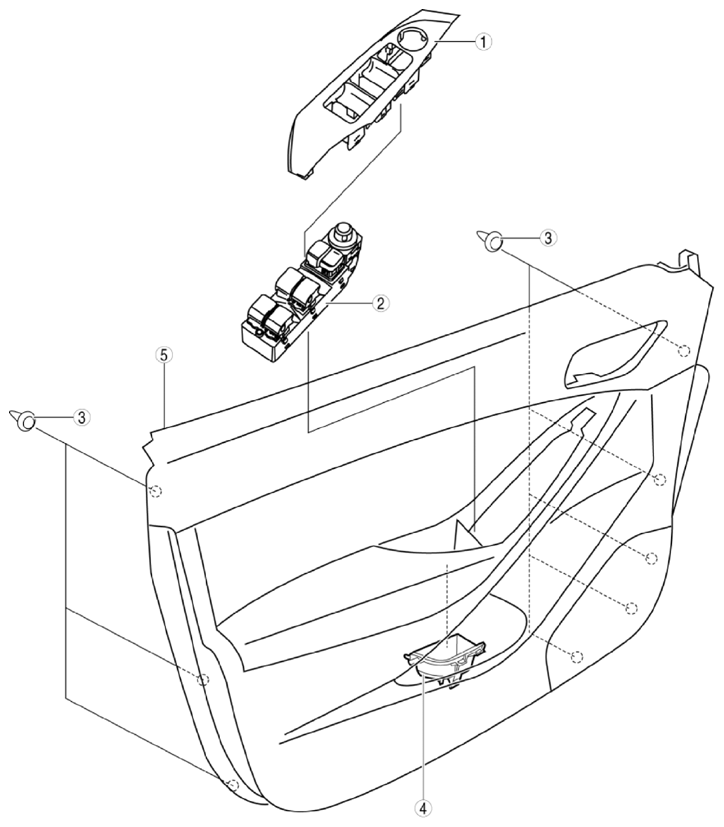

Fig 1: Front Door Trim Components (Driver-Side)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Switch panel cover
2	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
3	Fastener
4	Pocket
5	Front door trim

Assemble in the reverse order of disassembly.
