Console Side Bezel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console side panel No. 1. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
  2. Move the console side bezel in the direction of the arrow shown in the figure and detach the clip from the front console.

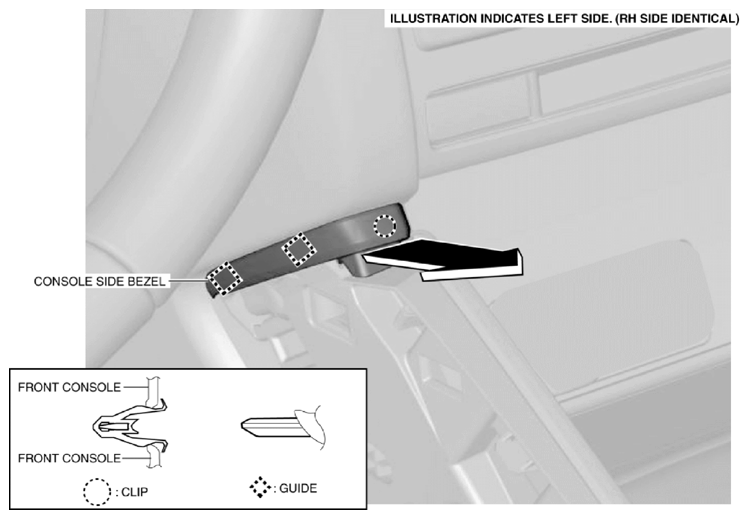

    Fig 1: Moving Console Side Bezel
    G10939147Courtesy of MAZDA MOTORS CORP.
  3. Move the console side bezel in the direction of the arrow shown in the figure and remove it while detaching the guide.
  4. Install in the reverse order of removal.
