Cargo Compartment Light Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
CAUTION:
- When inserting the remover tool in the gap between the cargo compartment light and the liftgate lower trim, the remover tool could interfere with the liftgate lower trim and scratch or damage it. When removing the cargo compartment light from the liftgate lower trim, apply protective tape to the liftgate lower trim.
To prevent scratches or damage, affix protective tape to the position shown in the figure.

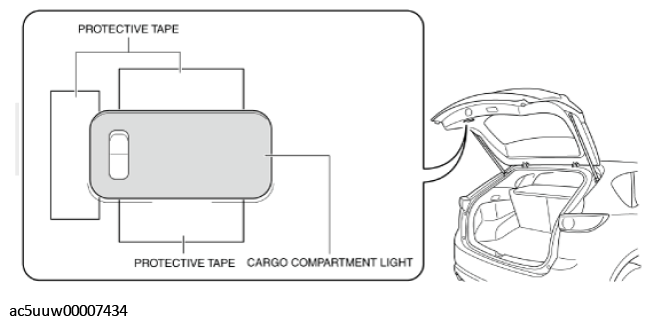

Fig 1: Cargo Compartment Light Protective Tape Applying Position
Courtesy of MAZDA MOTORS CORP.

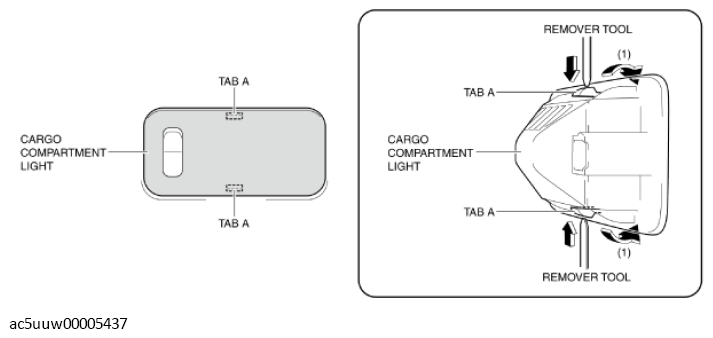

While pressing tabs A of the cargo compartment light using the remover tool, pull out the cargo compartment light in the direction of arrows (1) to detach tabs A of the cargo compartment light from the liftgate lower trim.

Fig 2: Pulling Out Cargo Compartment Light Using Remover Tool
Courtesy of MAZDA MOTORS CORP.

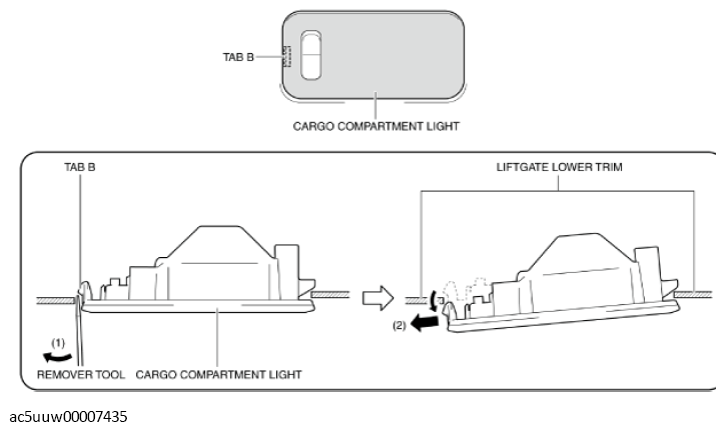

Move the remover tool in the direction of arrow (1) shown in the figure and pull out tab B of the cargo compartment light from the liftgate lower trim.

Fig 3: Pulling Out Tab Of Cargo Compartment Light From Liftgate Lower Trim
Courtesy of MAZDA MOTORS CORP.
Move the cargo compartment light in the direction of arrow (2) shown in the figure and pull out the cargo compartment light from the liftgate lower trim.
Disconnect the connector and remove the cargo compartment light.

Fig 4: Cargo Compartment Light And Connector
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
