Caliper Removal Note

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

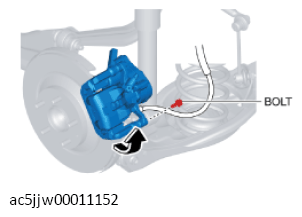

Remove the bolt shown in the figure and lift up the rear brake caliper.

Fig 1: Lifting Up Rear Brake Caliper
Courtesy of MAZDA MOTORS CORP.
