Brake Fluid Inspection
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
Oil and Chemical Type
Brake fluid type
Type: SAE J1703 or FMVSS116 DOT-3
CAUTION:
- Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

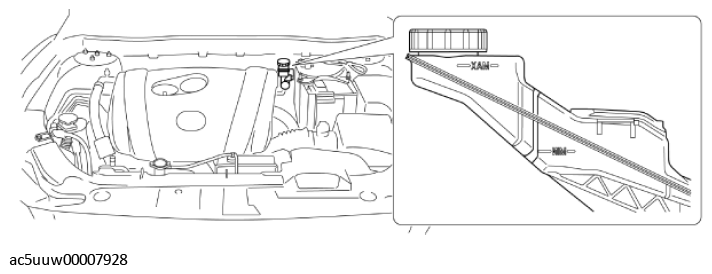

- Verify that the brake fluid level in the brake fluid reserve tank is between the MAX and MIN marks.
- If the brake fluid level is below the MIN mark, add brake fluid.
Brake fluid type
SAE J1703 or FMVSS116 DOT-3
