Front Center Speaker Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
Remove the front center speaker. (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .)
Verify that the resistance between the front center speaker terminals is as indicated in the table.

Fig 1: Identifying Front Center Speaker Connector Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the front center speaker.

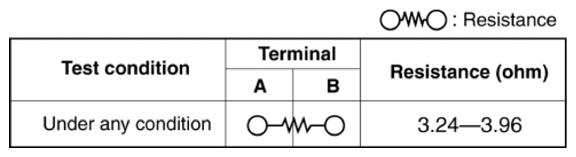

Fig 2: Front Center Speaker Terminals Resistance Chart
Courtesy of MAZDA MOTORS CORP.
