Rear Splash Shield

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

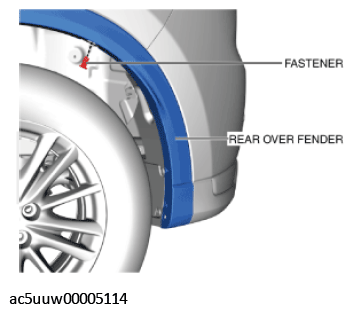

Remove the fastener.

Fig 1: Removing Rear Splash Shield
Courtesy of MAZDA MOTORS CORP.

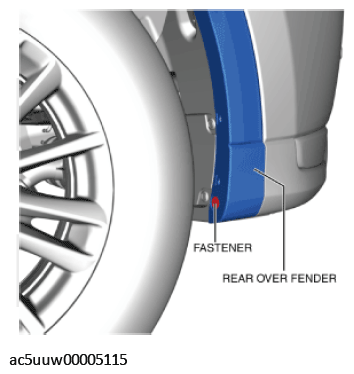

Remove the fastener.

Fig 2: Removing Rear Over Fender
Courtesy of MAZDA MOTORS CORP.

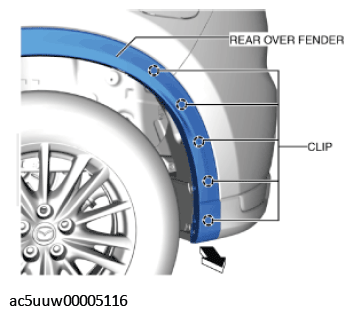

Pull the rear over fender in the direction of the arrow shown in the figure and disengage the clips shown in the figure.

Fig 3: Pulling Rear Over Fender Clips
Courtesy of MAZDA MOTORS CORP.

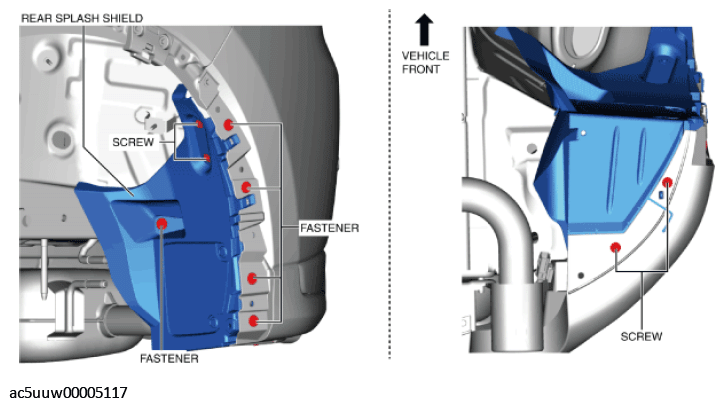

Remove the fasteners.

Fig 4: Removing Rear Splash Shield Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

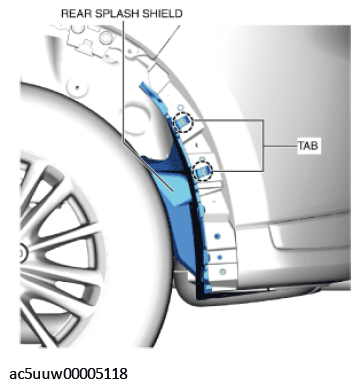

Detach the tabs from the rear bumper and remove the rear splash shield.

Fig 5: Removing Rear Splash Shield Tabs
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
