Front Splash Shield

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  2. Remove the fastener.

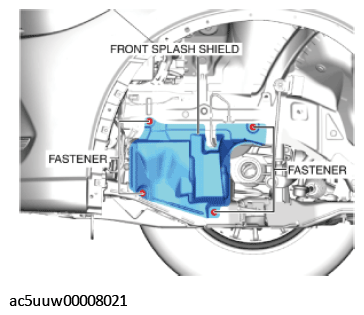

    Fig 1: Removing Front Splash Shield
    G11427623Courtesy of MAZDA MOTORS CORP.
  3. Remove the front splash shield.
  4. Install in the reverse order of removal.
