Foot Support Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  2. Partially peel back the floor covering.
  3. Remove the fastener.

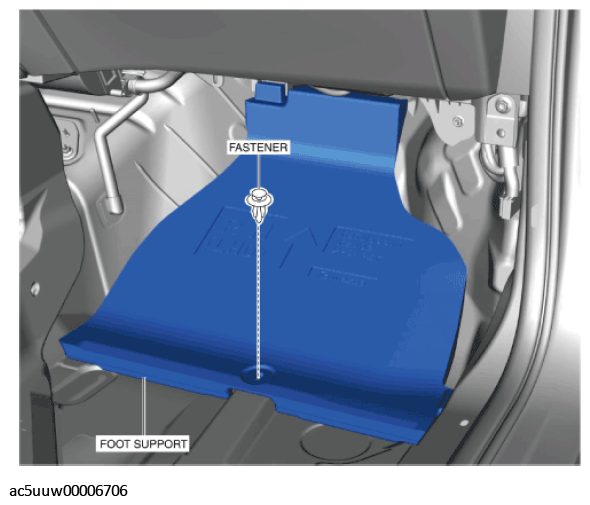

    Fig 1: Foot Support And Fastener
    G11427913Courtesy of MAZDA MOTORS CORP.
  4. Remove the foot support in the direction of the arrow shown in the figure.

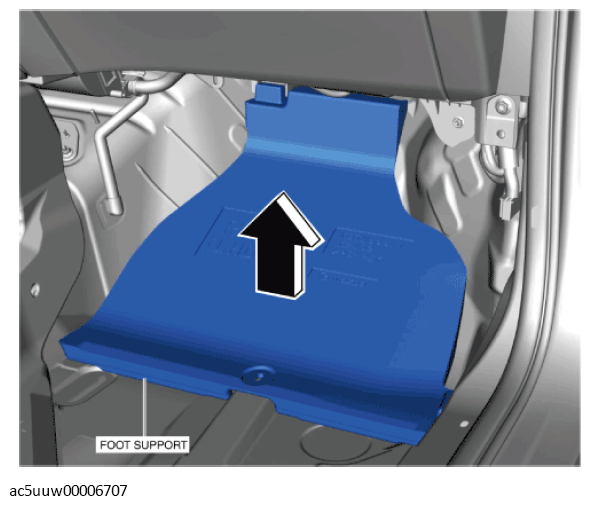

    Fig 2: Removing Foot Support
    G11427914Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
