Assist Handle Removal/Installation: Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Push the assist handle in the direction of the arrows shown in the figure and insert it into the assist handle brackets.

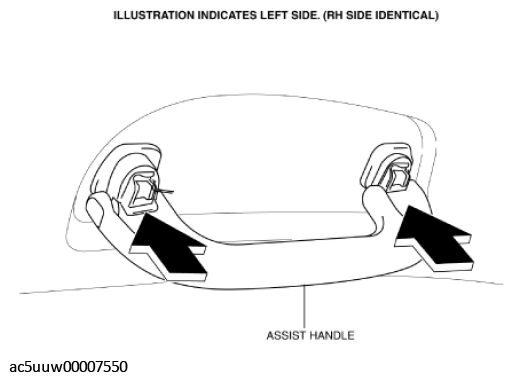

Fig 1: Installing Assist Handle Into Assist Handle Brackets
Courtesy of MAZDA MOTORS CORP.
Push the assist handle covers in the direction of the arrows shown in the figure to install the assist handle.

Fig 2: Pushing Assist Handle Covers

Courtesy of MAZDA MOTORS CORP.
