Locks And Openers

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

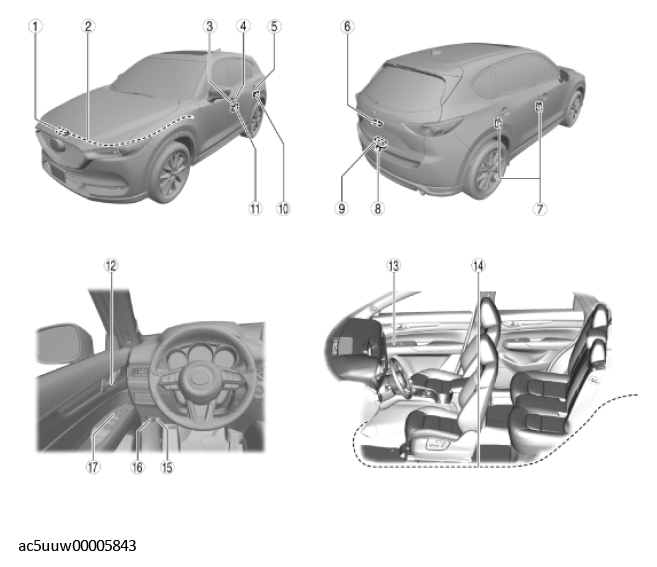

Fig 1: Locks And Openers Parts Location (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Hood latch (See HOOD LATCH REMOVAL/INSTALLATION .)
2	Hood release cable (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
3	Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)
4	Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .) (See FRONT DOOR KEY CYLINDER SWITCH INSPECTION .)
5	Rear outer handle (See REAR OUTER HANDLE REMOVAL/INSTALLATION .)
6	Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .) (See LIFTGATE OPENER SWITCH INSPECTION .)
7	Door lock striker (See DOOR LOCK STRIKER REMOVAL/INSTALLATION .)
8	Liftgate lock striker (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION .)
9	Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION .) (See LIFTGATE LOCK ACTUATOR INSPECTION .) (See LIFTGATE/POWER LIFTGATE (PLG) LATCH SWITCH INSPECTION .)
10	Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION .) (See REAR DOOR LOCK ACTUATOR INSPECTION .) (See REAR DOOR LATCH SWITCH INSPECTION .) (See REAR DOOR LOCK-LINK SWITCH INSPECTION .)
11	Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION .) (See FRONT DOOR LOCK ACTUATOR INSPECTION .) (See FRONT DOOR LATCH SWITCH INSPECTION .) (See FRONT DOOR LOCK-LINK SWITCH INSPECTION .)
12	Inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
13	Door lock switch (passenger's side) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .) (See DOOR LOCK SWITCH INSPECTION .)
14	Fuel-filler lid opener cable (See FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION .)
15	Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
16	Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
17	Door lock switch (driver's side) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .) (See DOOR LOCK SWITCH INSPECTION .)
