Front Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Special Service Tool (SST)

1.: Mazda SST number 2.: Global SST number
1: 49 B011 105 2: - Adapter	Courtesy of MAZDA MOTORS CORP.	1: 49 UN20 5072 2: 205-072 Holder	Courtesy of MAZDA MOTORS CORP.	1: 49 G028 205 2: - Oil seal installer	Courtesy of MAZDA MOTORS CORP.

Replacement Part

Front oil seal

Quantity: 1

Location of use: Engine front cover

Oil and Chemical Type

Engine oil

Type: Recommended oil

WARNING:

A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

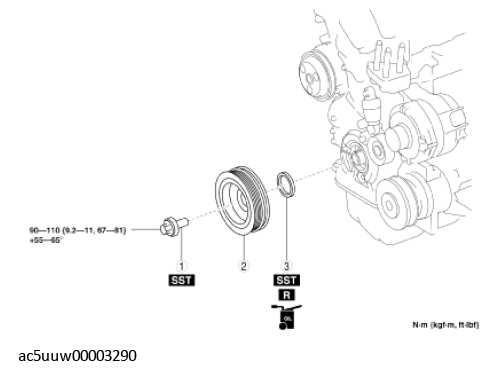

Fig 1: Removing Crankshaft Pulley Bolt, Crankshaft Pulley And Oil Seal

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Crankshaft pulley lock bolt (See Crankshaft Pulley Lock Bolt Removal Note .) (See Crankshaft Pulley Lock Bolt Installation Note .)
2	Crankshaft pulley
3	Front oil seal (See Front Oil Seal Removal Note .) (See Front Oil Seal Installation Note .)
