Horn Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
  4. Remove the bolt.

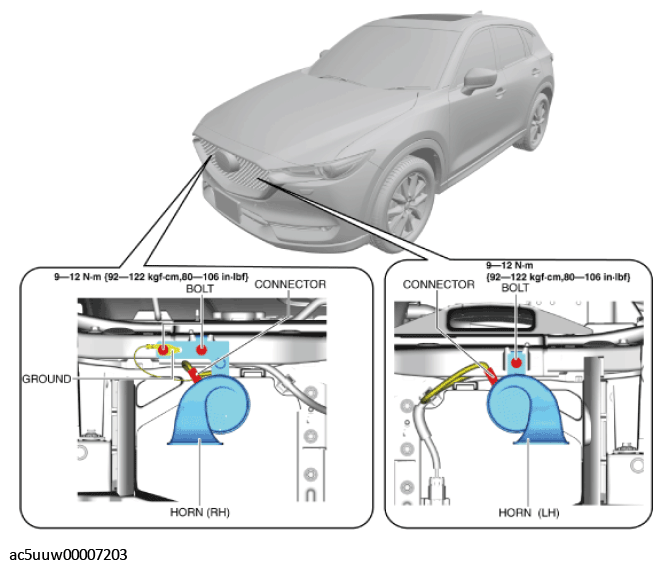

    Fig 1: Horn Bolts With Torque Specification
    G11427797Courtesy of MAZDA MOTORS CORP.
  5. Remove the ground. (RH only)
  6. Remove the horn.
  7. Install in the reverse order of removal.
