Battery Tray Installation Note

  1. When replacing the battery tray with a new one, install the bracket using the following procedure:

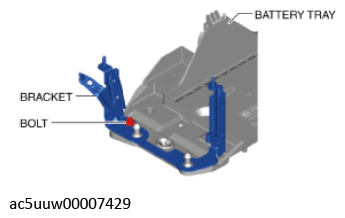

    1. Temporarily tighten the bolt shown in the figure.
      G11427312Courtesy of MAZDA MOTORS CORP.

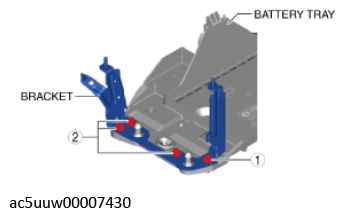

    2. Tighten the bolts in the order shown in the figure.
    Fig 1: Battery Tray Bracket Bolts Tightening Sequence
    G11427313Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATION

    Tightening torque
    8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
  2. Tighten the battery tray installation bolts in the order shown in the figure.
    Fig 2: Battery Tray Installation Bolts Tightening Sequence
    G11427314Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATION

    Tightening torque
    22-30 N.m {2.3-3.0 kgf.m, 17-22 ft.lbf}

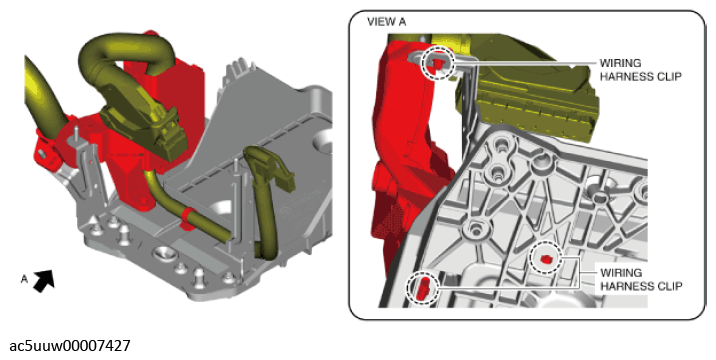

  3. Install the wiring harness clips shown in the figure.
    G11427310Courtesy of MAZDA MOTORS CORP.

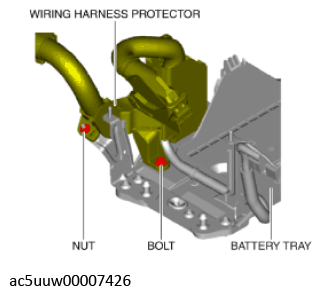

  4. Tighten the bolt and nut shown in the figure.
    G11427309Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATION

    Tightening torque
    Bolt: 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
    Nut: 9-12 N.m {92-122 kgf.cm, 80-106 in.lbf}
  5. Install the PCM component. (See PCM REMOVAL/INSTALLATION [VIN M] .)
  6. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [VIN M] .)
