Grommet Removal Note

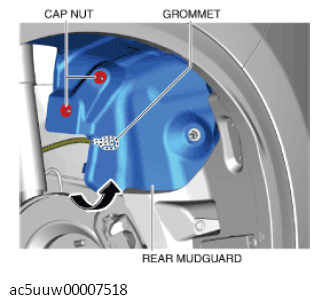

  1. Remove the cap nuts.
    G11427007Courtesy of MAZDA MOTORS CORP.
  2. Partially peel back the rear mudguard and remove the grommet.
