Grommet Removal Note

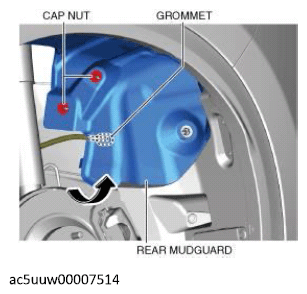

  1. Remove the cap nuts.
    G12189006Courtesy of MAZDA MOTORS CORP.
  2. Partially peel back the rear mudguard and remove the grommet.
