Sunroof Unit Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

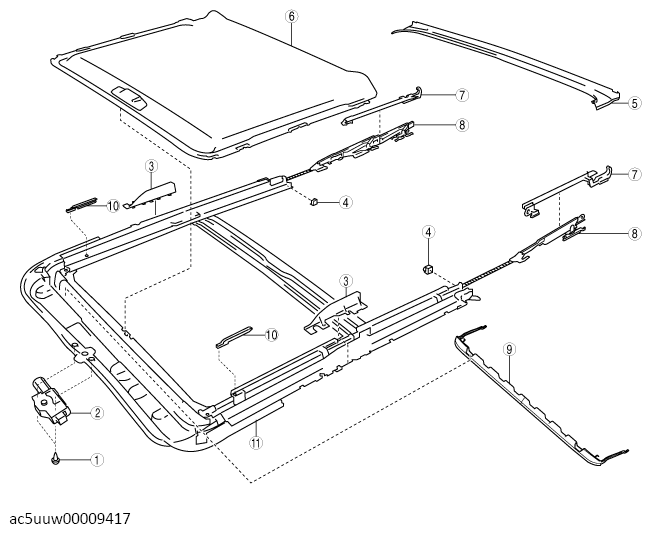

    G13676328Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Screw
    2 Sunroof motor
    3 Screen
    4 Rear stopper
    5 Drip rail
    6 Sunshade
    (See Sunshade Disassembly Note .)
    7 Front guide
    (See Front Guide Disassembly Note .)
    8 Decoration link
    9 Deflector
    10 Set plate
    11 Sunroof frame
  2. Assemble in the reverse order of disassembly.
