Front Seat Warmer Control Unit Removal/Installation

WARNING:
  1. Switch the ignition off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Disconnect the connector.

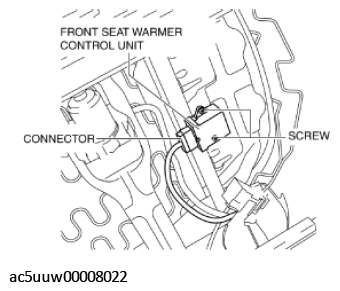

    G11426440
  4. Remove the screws.
  5. Remove the front seat warmer control unit.
  6. Install in the reverse order of removal.
