Front Seat Back Trim Installation Note

CAUTION:

• If a C-ring is damaged when removing or installing the front seat back trim and the front seat back pad, it may not be possible to correctly install the front seat back trim and the front seat back pad. When removing or installing the front seat back trim and the front seat back pad, be careful not to damage the C-rings.
• If a C-ring is damaged, replace it with a new one.

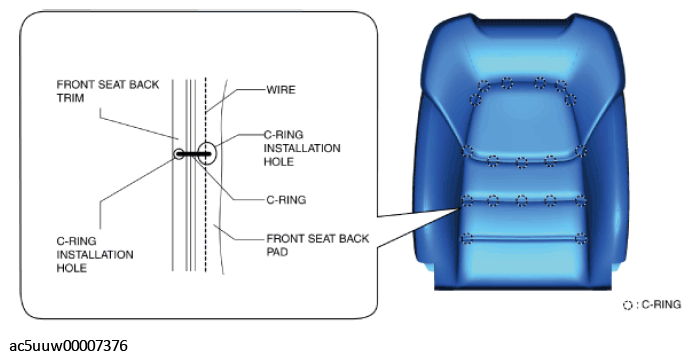

1. Install the C-rings by aligning the C-ring installation holes of the front seat back trim and the front seat back pad.
   CAUTION:

   • If a C-ring is damaged while removing or installing the front seat back trim and front seat back pad, it may not be possible to install the front seat back trim and front seat back pad normally. When removing or installing the front seat back trim and front seat back pad, be careful not to damage the C-rings.
   • If a C-ring is damaged, replace it with a new one.
   NOTE:

   • The position and number of C-rings differ depending on the type of seat.
   • Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.
2. Press the front seat back pad inward while pulling the front seat back trim outward.
