Rear Console Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    3. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    4. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)

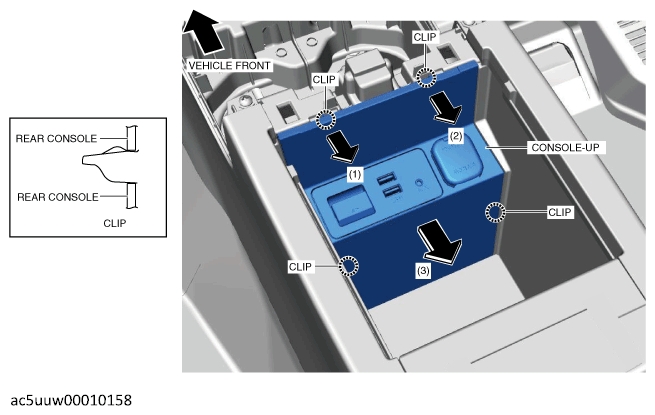

  3. Using a remover tool, detach the clips in the order of arrows (1) and (2) shown in the figure.
    G12187798Courtesy of MAZDA MOTORS CORP.
  4. Move the console-up in the direction of arrow (3) shown in the figure and detach the clips.

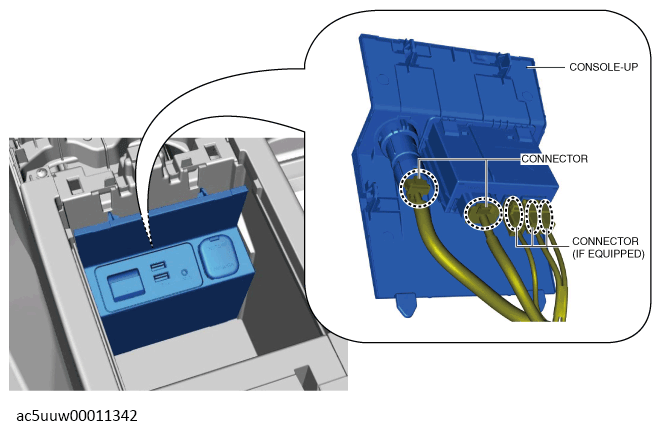

  5. Disconnect the connectors.
    G13676606Courtesy of MAZDA MOTORS CORP.

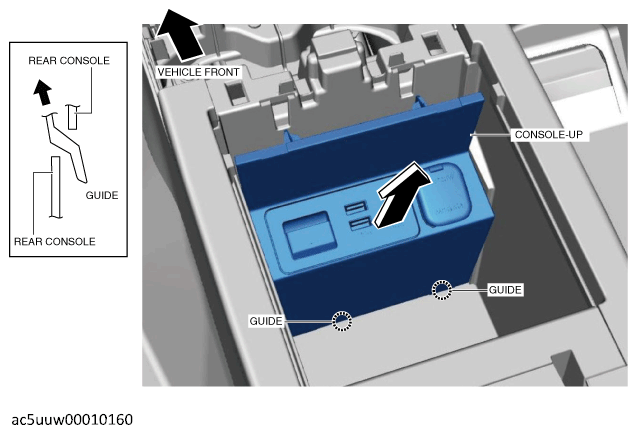

  6. Move the console-up in the direction of the arrow shown in the figure, detach the guides from the rear console, and remove the console-up.
    G12187801Courtesy of MAZDA MOTORS CORP.
  7. Close the console lid.
    G11428005Courtesy of MAZDA MOTORS CORP.

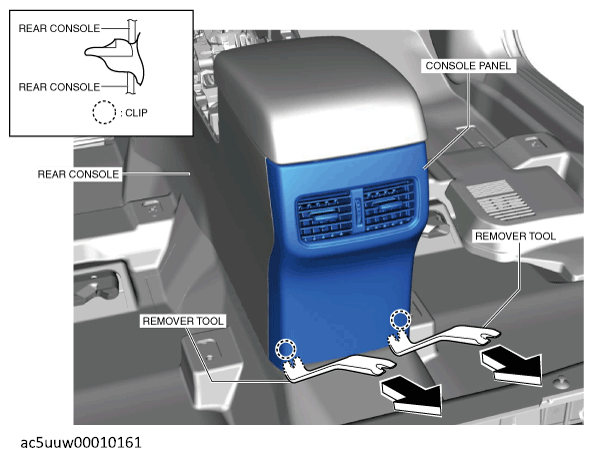

  8. Insert the remover tool into the position shown in the figure, move it in the direction of the arrows, and detach the clips.
    G12187803Courtesy of MAZDA MOTORS CORP.

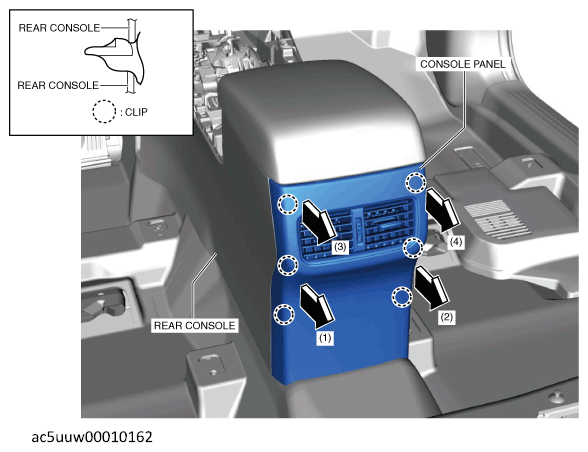

  9. Move the console panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and detach the clips.
    G12187804Courtesy of MAZDA MOTORS CORP.
  10. Remove the console panel from the rear console.
  11. Remove bolts A and bolts B.
    Fig 1: Rear Console Bolts With Torque Specification
    G11428008Courtesy of MAZDA MOTORS CORP.

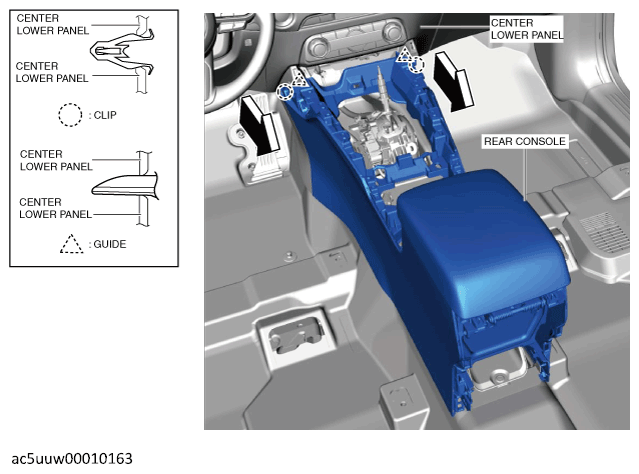

  12. Move the rear console in the direction of the arrows shown in the figure, detach the clips and guides from the center lower panel, and remove the rear console.
    G12187806Courtesy of MAZDA MOTORS CORP.
  13. Install in the reverse order of removal.
