Rear Splash Shield

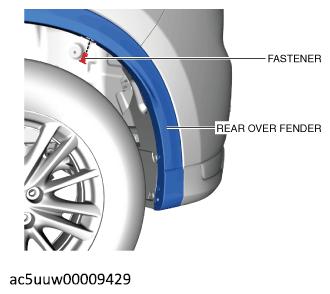

  1. Remove the fastener.
    G12187605Courtesy of MAZDA MOTORS CORP.

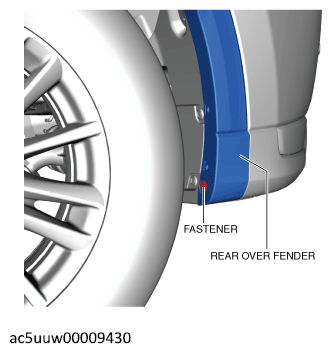

  2. Remove the fastener.
    G12187606Courtesy of MAZDA MOTORS CORP.

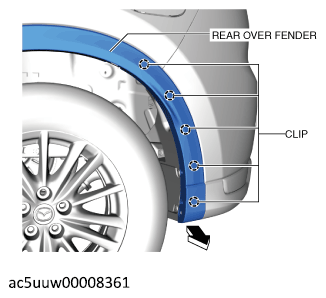

  3. Pull the rear over fender in the direction of the arrow shown in the figure and disengage the clips shown in the figure.
    G12187607Courtesy of MAZDA MOTORS CORP.

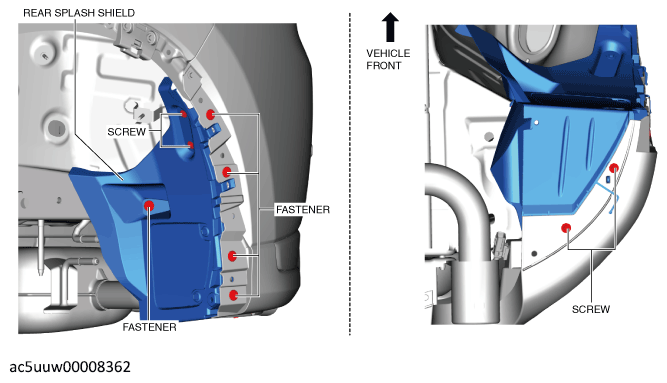

  4. Remove the fasteners.
    G12187608Courtesy of MAZDA MOTORS CORP.
  5. Remove the screws.

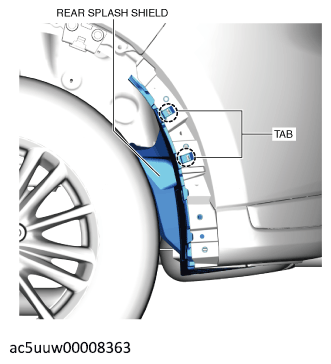

  6. Detach the tabs from the rear bumper and remove the rear splash shield.
    G12187609Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
