Front Splash Shield

  1. Remove the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  2. Remove the fastener.

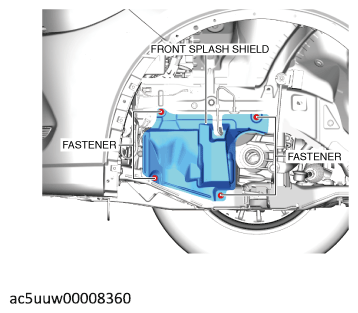

    G12187604Courtesy of MAZDA MOTORS CORP.
  3. Remove the front splash shield.
  4. Install in the reverse order of removal.
