Radiator Grille Disassembly/Assembly: Notes

Replacement parts

1. Remove the front camera. (With 360° View monitor system) (See FRONT CAMERA REMOVAL/INSTALLATION .)
2. Disassemble in the order indicated in the table.

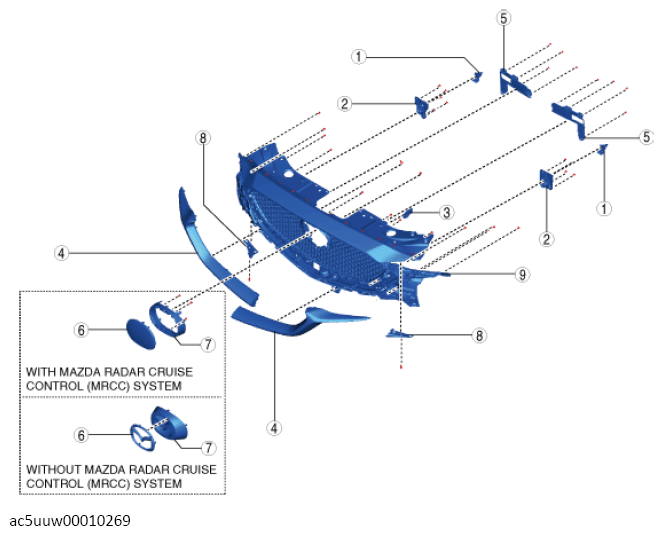

   Step 1

   Courtesy of MAZDA MOTORS CORP.

   PARTS DESCRIPTION



   1	Locator pin
   2	Locator pin bracket
   3	Clip
   4	Lower grille molding
   5	Radiator grille cover (With radiator grille cover)
   6	Mascot
   7	Mascot base
   8	Grille garnish
   9	Radiator grille component

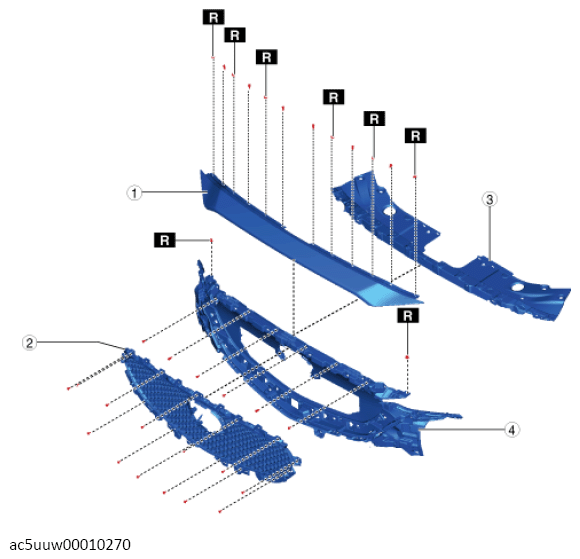

   Step 2

   Courtesy of MAZDA MOTORS CORP.

   1	Upper face (See Rivet Removal Note .) (See Upper Face Removal Note .)
   2	Grille mesh
   3	Radiator grille bracket
   4	Radiator grille reinforcement

3. Assemble in the reverse order of disassembly.
