Extractor Chamber Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
    2. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    3. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)
  3. Insert a tape-wrapped flathead screwdriver shown in the figure and remove the tab in the direction of arrow (1).

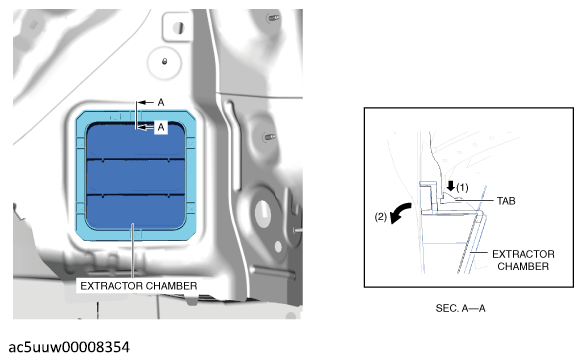

    G12187536Courtesy of MAZDA MOTORS CORP.
  4. Remove the extractor chamber in the direction of arrow (2).
  5. Install in the reverse order of removal.
