Vehicle interior, rear

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  3. Disconnect the connector from the keyless antenna.

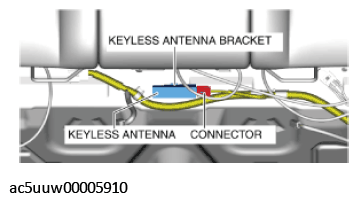

    G11426603Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.
  4. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

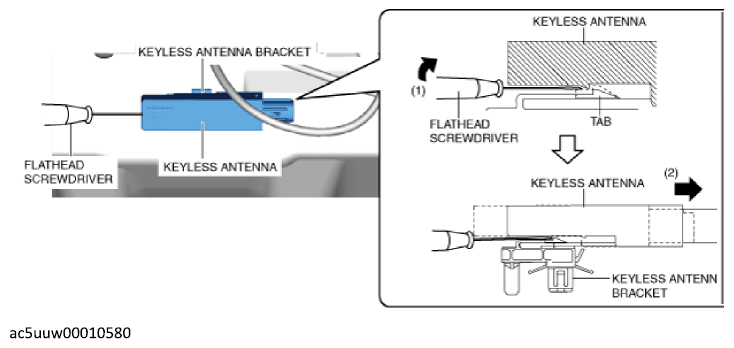

    G12187400Courtesy of MAZDA MOTORS CORP.
  5. Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.
  6. Remove the keyless antenna from the keyless antenna bracket.
  7. While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the body.

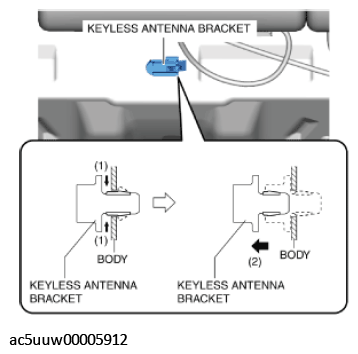

    G11426605Courtesy of MAZDA MOTORS CORP.
  8. Remove the keyless antenna bracket from the body.
  9. Install in the reverse order of removal.
