Front Combination Light Disassembly/Assembly: Notes
- Disassemble in the order shown in the figure.

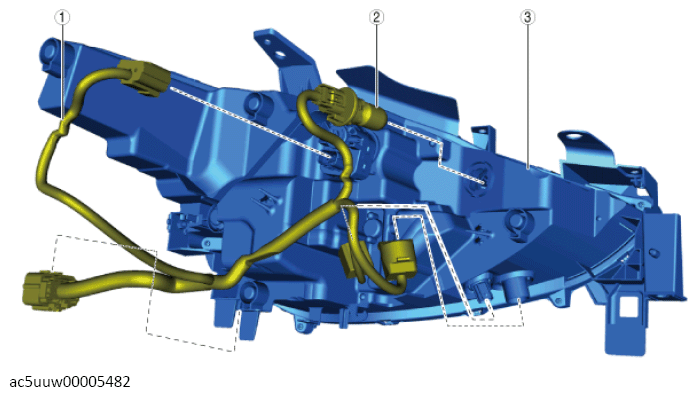

With headlight manual leveling system
1 Short cord
(See Short Cord Removal Note )2 Front side marker light bulb
(See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)3 Front turn light/parking light bulb

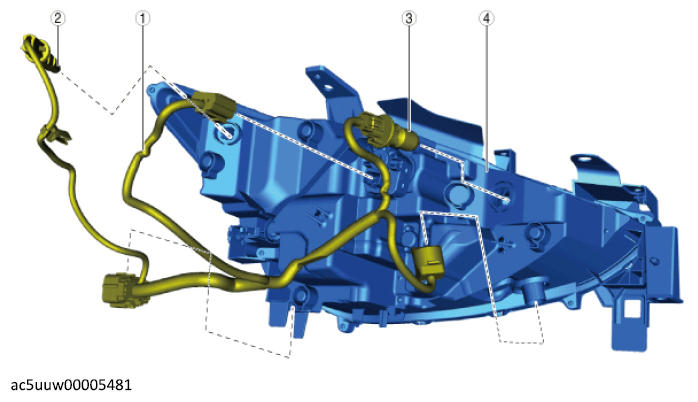

(See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .)4 Front combination light With headlight auto leveling system
1 Short cord
(See Short Cord Removal Note )2 Front turn light/parking light bulb
(See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .)3 Front combination light - Assemble in the reverse order of disassembly.
