Front Brake Mounting Support Removal/Installation (Us): Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
Replacement Part
| Dust boot Quantity: 2 Location of use: Front brake mounting support |
Bush Quantity: 2 Location of use: Slide pin |
Spring Quantity: 2 Location of use: Disc pad component |
Oil and Chemical Type
| Brake grease (Brown-gray) Type: PLASTILUBE |
Brake grease (White) Type: KLUBER |
Rubber grease (Orange-red) Type: NIGLUBE |
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

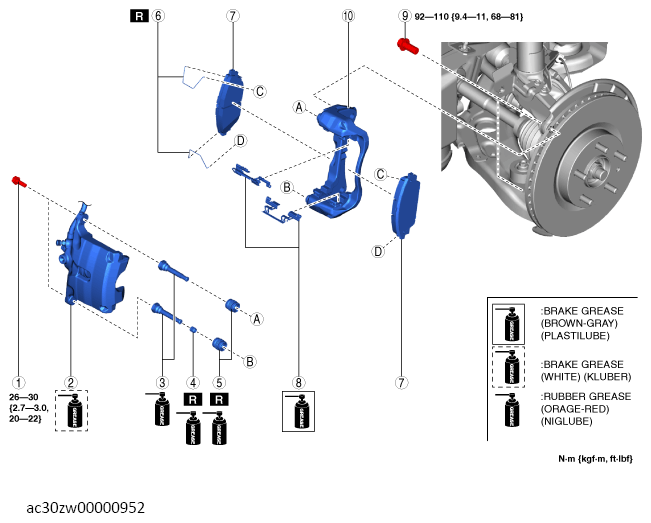

COMPONENT DESCRIPTION
| 1 | Bolt |
| 2 | Front brake caliper (See FRONT BRAKE CALIPER REMOVAL NOTE .) (See FRONT BRAKE CALIPER INSTALLATION NOTE .) |
| 3 | Slide pin |
| 4 | Bushing |
| 5 | Dust boot |
| 6 | Spring |
| 7 | Disc pad component |
| 8 | Guide plate (See GUIDE PLATE INSTALLATION NOTE .) |
| 9 | Bolt |
| 10 | Front brake mounting support |
