Connectivity Master Unit (CMU) Disassembly/Assembly

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

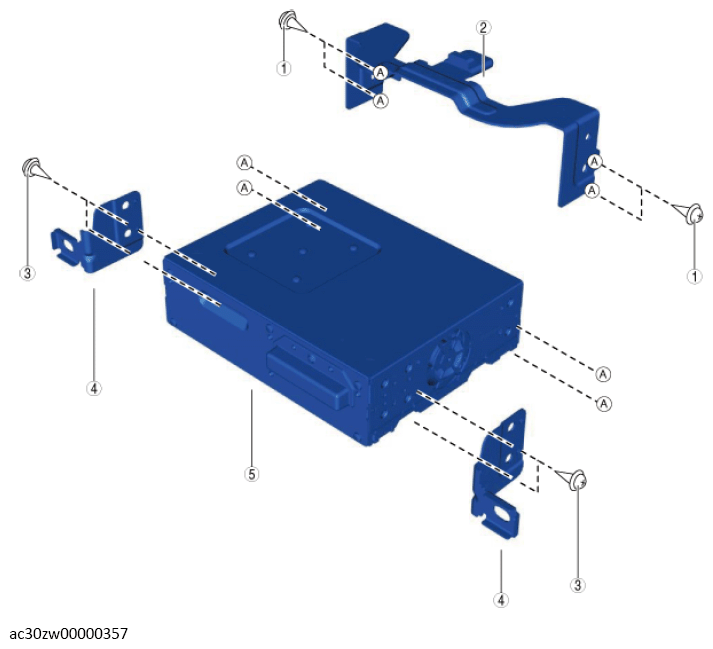

Disassemble in the order indicated in the table.

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw
2	Bracket A
3	Screw
4	Bracket B
5	CMU

Assemble in the reverse order of disassembly.
