Side Turn Light Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
2. Upper outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
3. Lower outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
4. Side camera (With 360° view monitor system) (See SIDE CAMERA REMOVAL/INSTALLATION .)

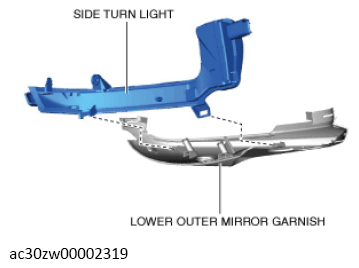

Remove the side turn light from the lower outer mirror garnish.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Perform the 360° View monitor system aiming. (With 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
