Sunshade Disassembly Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing the sunshade, the sunshade handle could interfere with the sunroof frame and cause part damage.

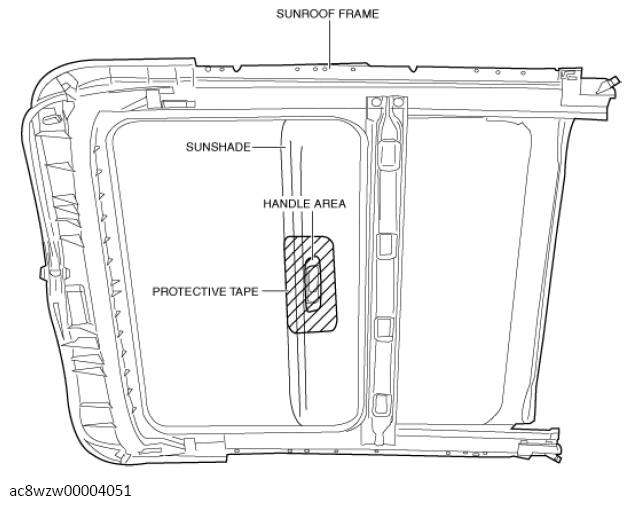

Affix the protective tape to the position shown in the illustration to prevent scratches and damage.

Courtesy of MAZDA MOTORS CORP.

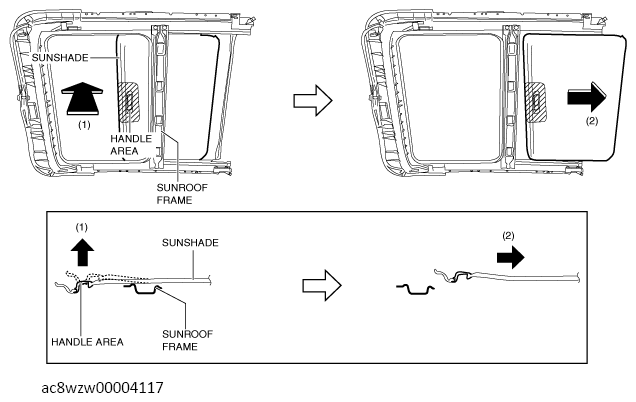

Remove the sunshade while lifting it up in the direction of arrow (1) shown in the illustration and sliding it in the direction of arrow (2).

Courtesy of MAZDA MOTORS CORP.
